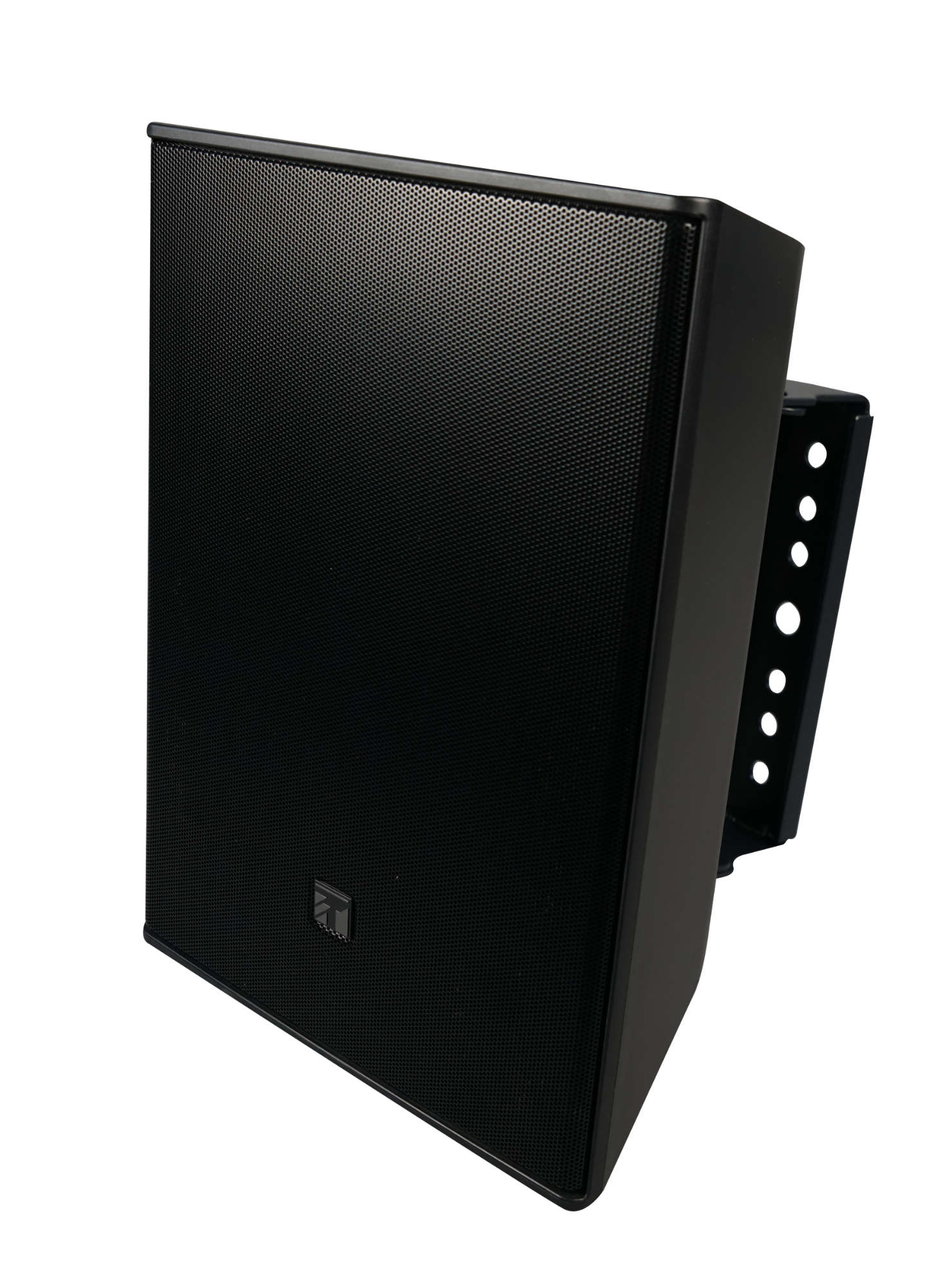

TOA F-08BT-WP-UE / F-08WT-WP-UE

The TOA F-08BT-WP-UE / F-08WT-WP-UE is a powerful outdoor cabinet speaker with maximum performance for larger spaces – this box speaker delivers clear highs and powerful bass for an exceptional audio experience.

It’s IP65 rated making it suitable for use outdoors and EN54-24 compliant for use in Voice Alarm & Evacuation PAVA Systems.

The F-08 is fitted with an 8” 2-way speaker and is rated at 60 Watts (100V) or 90 Watts (8 Ohms).

The TOA F-Box Series F-08BT-WP-UE (Black) and / F-08WT-WP-UE (White) are fitted with an 8” 2-way speaker and are compatible with both high impedance and low impedance audio systems, rated at 60 watts at 100V or 90 Watts at 8 Ohms. Ideal for boutiques, restaurants, or conference rooms as well as outdoor areas such as terraces & gardens.

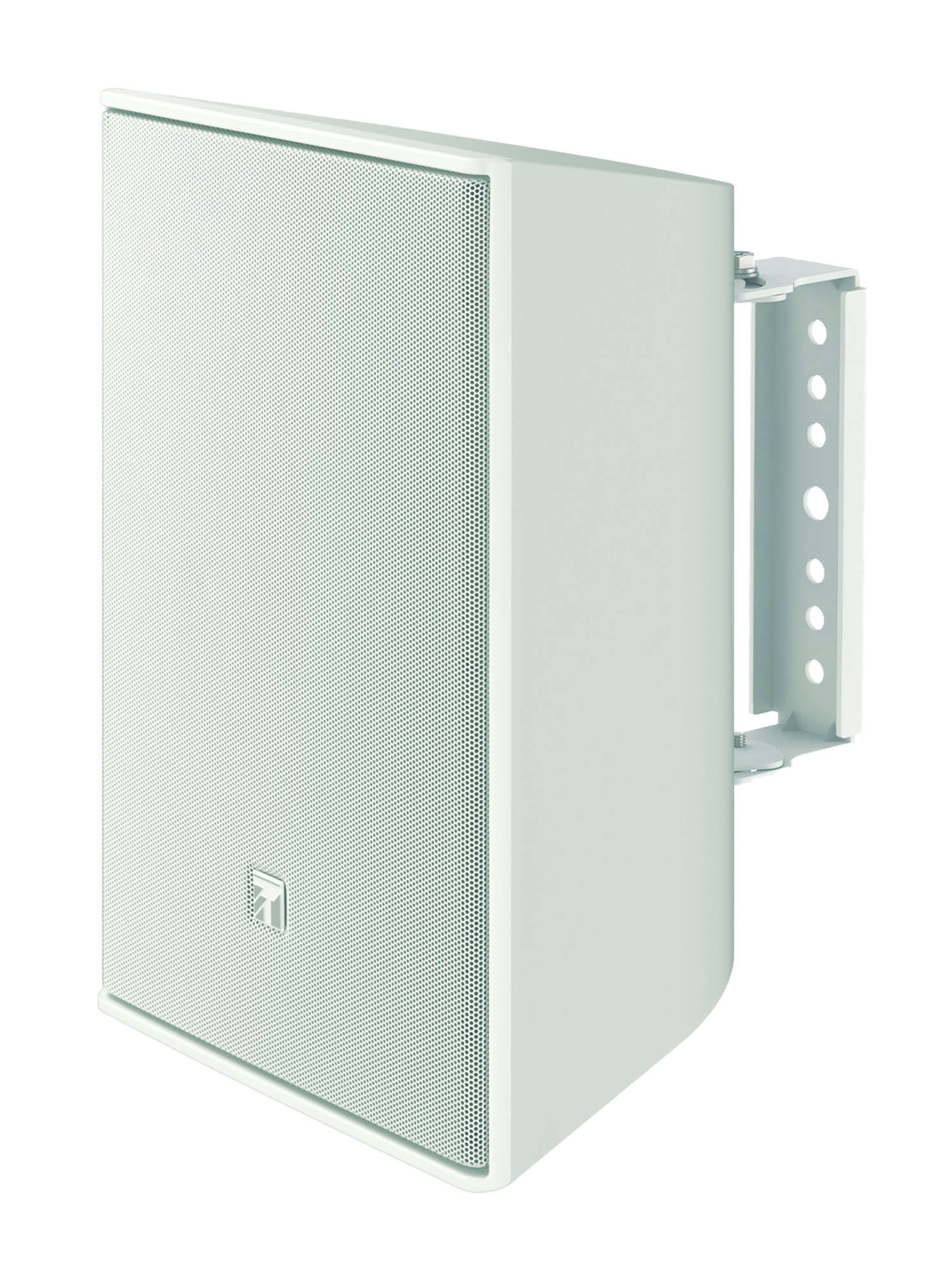

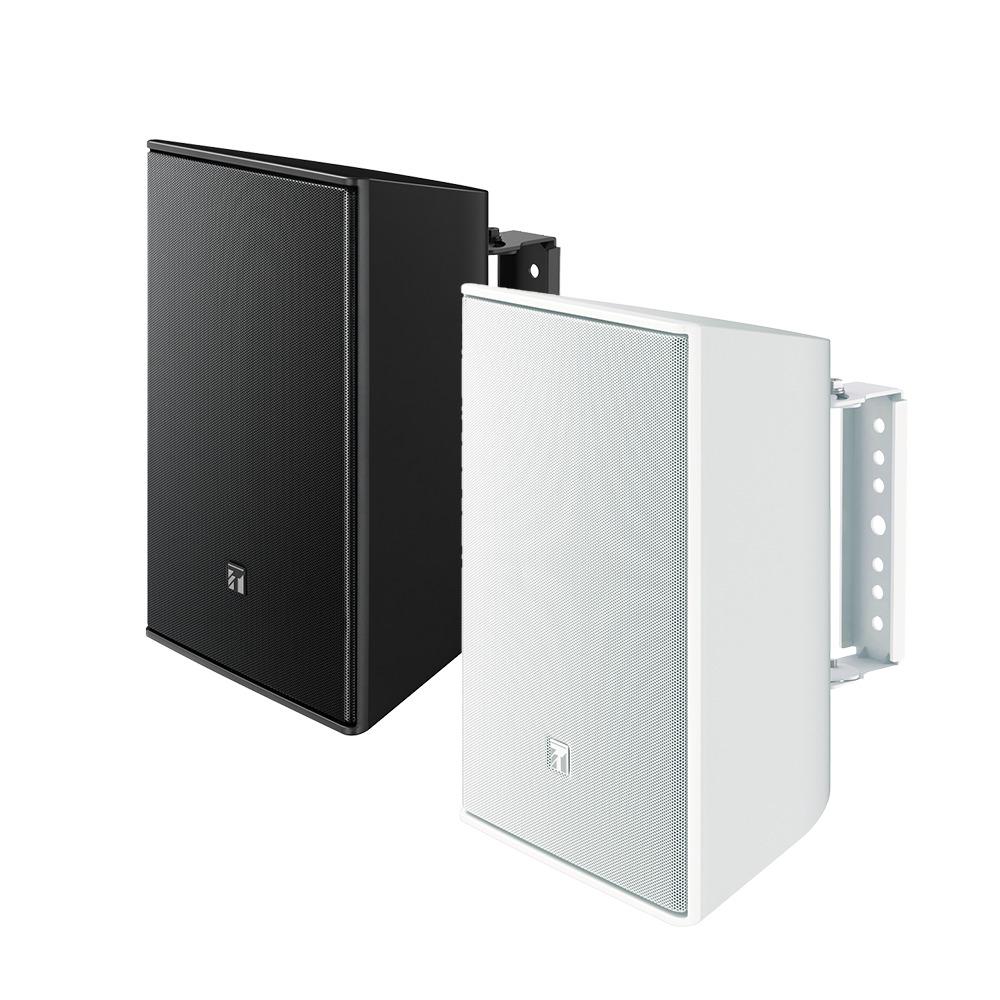

Available in black (F-08BT-WP-UE) or white (F-08WT- WP-UE) and supplied with a ‘U’ shaped wall mounting bracket, with swivel adjustment only, for both wall and ceiling use.

  • Versatile 8-inch 2-way surface-mount speaker system
  • EN-54-24 certified
  • IP65 weather protection
  • Perfect for music and announcements
  • Sleek design for seamless integration with walls and ceilings
  • Safe and easy installations with included mounting bracket
  • Ideal for permanent installs or portable setups
  • Available in black and white (BT = black, WT= white)
  • Supplied and priced individually
  • Warranty: 1 Year

The TOA F-BOX Series loudspeakers feature a minimalist, flat design to blend seamlessly into any architectural environment and there are models suitable for use indoors and outdoors.

Available in choice of sizes and fitted with a 3.5" full-range speaker or 5" / 8" two-way system. There’s also a matching 8” subwoofer. Please see related products below.

These surface-mount speakers deliver clear audio and sleek aesthetics, ideal for voice announcements and background music on both high-impedance and low-impedance audio systems.

Outdoor models are dustproof splashproof (IP65) and EN54-24 certified, making them ideal for voice evacuation systems.

100V IPxx Evac 8ohms
List Ex VAT: £375.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Frequency range

70 Hz - 20 kHz

Sensitivity (1 W, 1 m)

90 dB

Rated input (100 V)

60 W

Tappings (100 V)

60/30/15/3 W

Rated input (low impedance)

Rated noise power:90 W (8 Ω),
Continuous program 180 W (8 Ω)

Rated impedance

8 Ω

Speaker component

Low frequency 20 cm (8'') PPcone-type,
High frequency: 25 mm (1'') dome tweeter

Cord connector

M4 screw terminal (distance between barriers: 9 mm)

Operating temperature

−10 °C to +50 °C

Finish

Aluminium grill, black (RAL 9011 or equivalent)

Dimensions

251 x 392 x 216 mm (W x H x D)

Weight

5.5 kg
