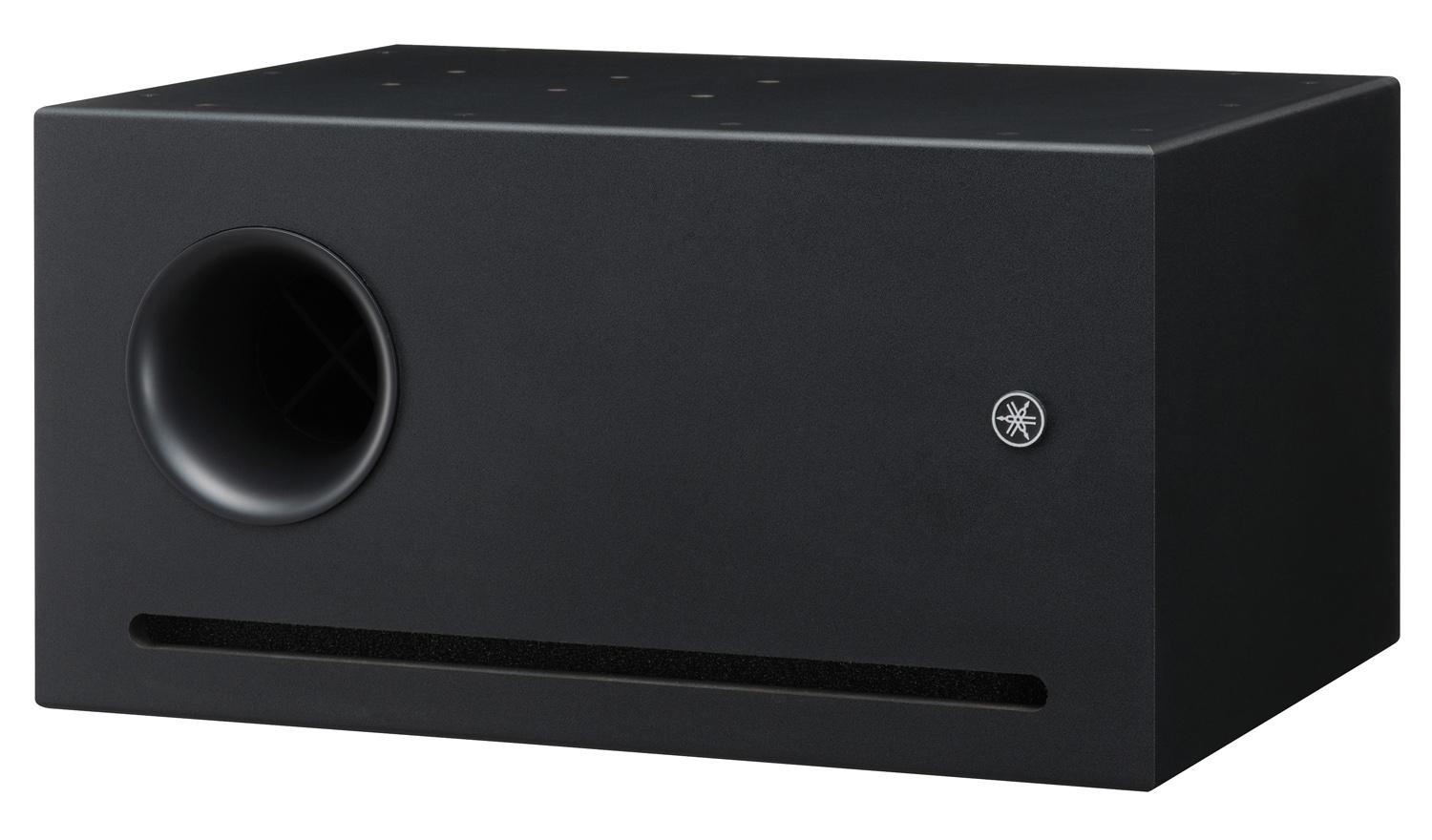

Yamaha VXS10ST subwoofer loudspeaker for 70 / 100 volt line. Dual voice coil, 10". Rated at 200 watts + 200 watts Program power and compatible with high impedance music systems only.
Supplied with wall mounting bracket.

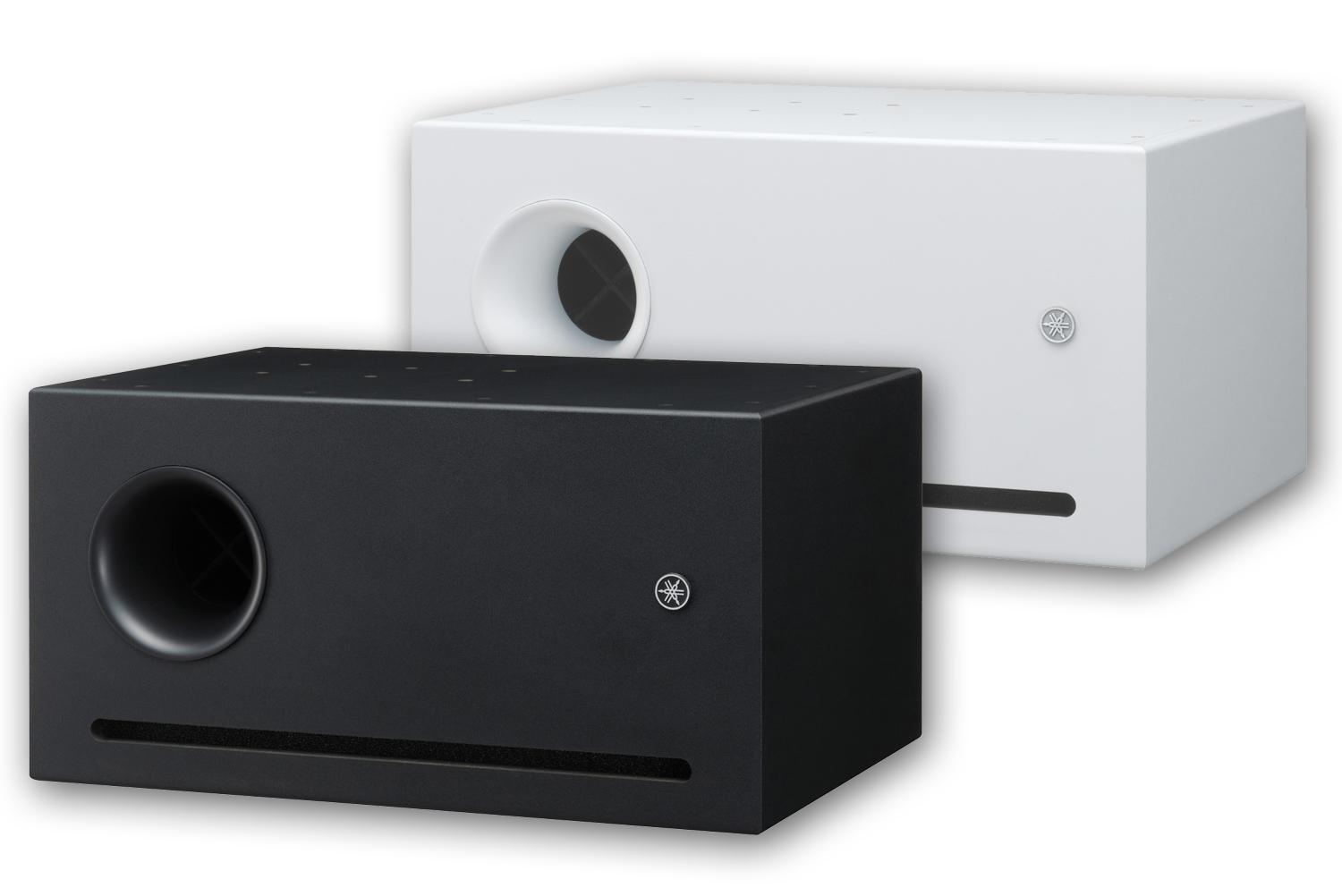

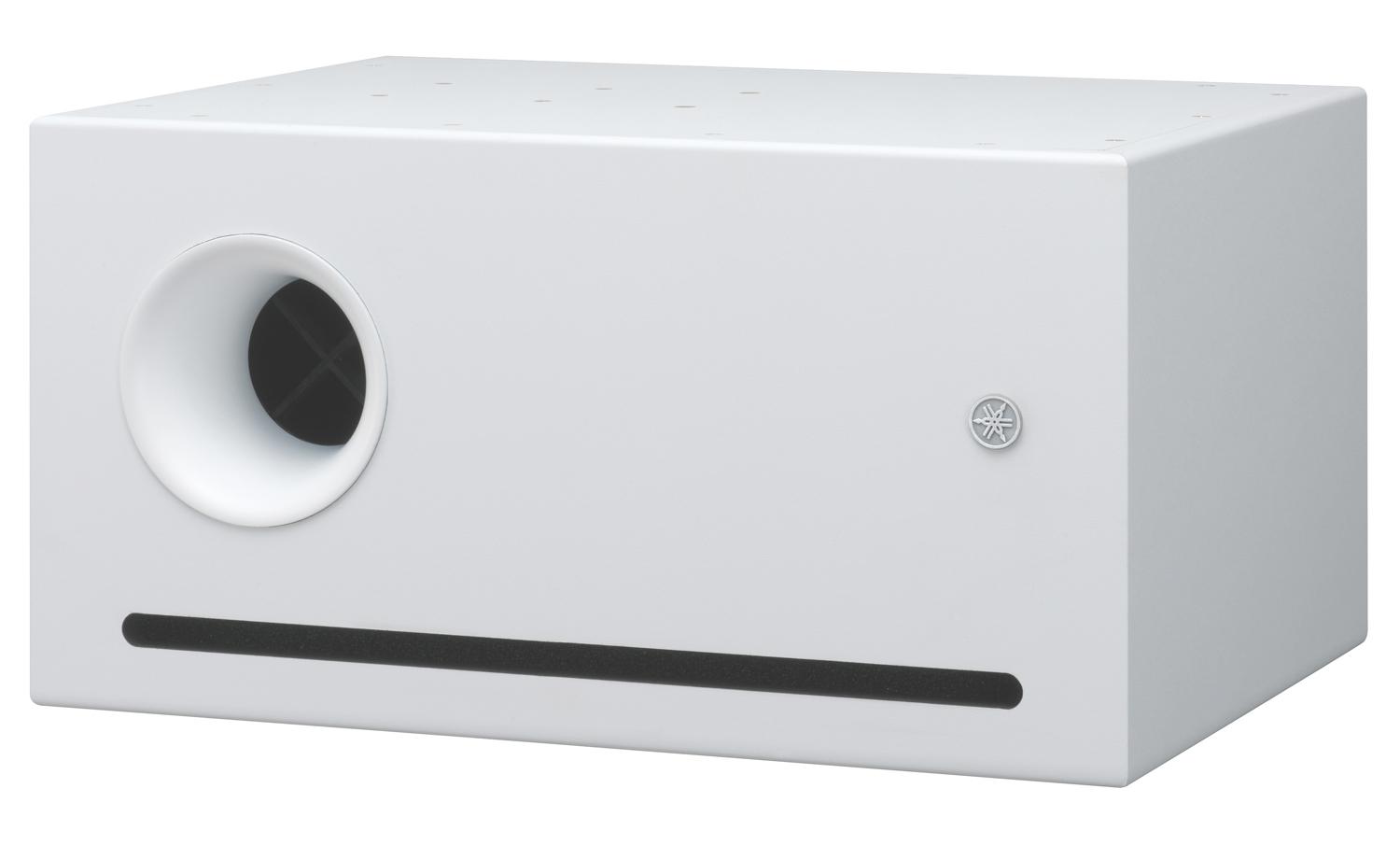

Available in black or white.
*****SUPPLIED & PRICED INDIVIDUALLY*****
|
General specifications |
VXS10ST / VXS10STW |
|
Speaker Type |
Subwoofer |
|
Frequency response (-10dB) |
45Hz-250Hz |
|
Components |
10” Dual Voice Coil |
|
Satellite impedance |
8Ω load per satellite output recommended |
|
Transformer Taps (100V) |
25W, 12.5W, 6.3W |
|
Transformer Taps (70V) |
25W, 12.5W, 6.3W, 3.1W |
|
SPL Sensitivity (1W; 1m on axis) |
96dB SPL |
|
I/O connectors |
Input: 1x Euroblock (4P)(Input: + / -, Loop Thru: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -) |
|
Cabinet material |
MDF |
|
Finish |
VXS10S: Black, VXS10SW: White |
|
Dimensions W x H x D |
Transformer Taps (100V) 25W, 12.5W, 6.3W Transformer Taps (70V) 25W, 12.5W, 6.3W, 3.1W |
|
Net weight |
19.5 kg (43 lbs) |
|
Accessories |
Wall mount bracket |
