Tascam CD-200BT

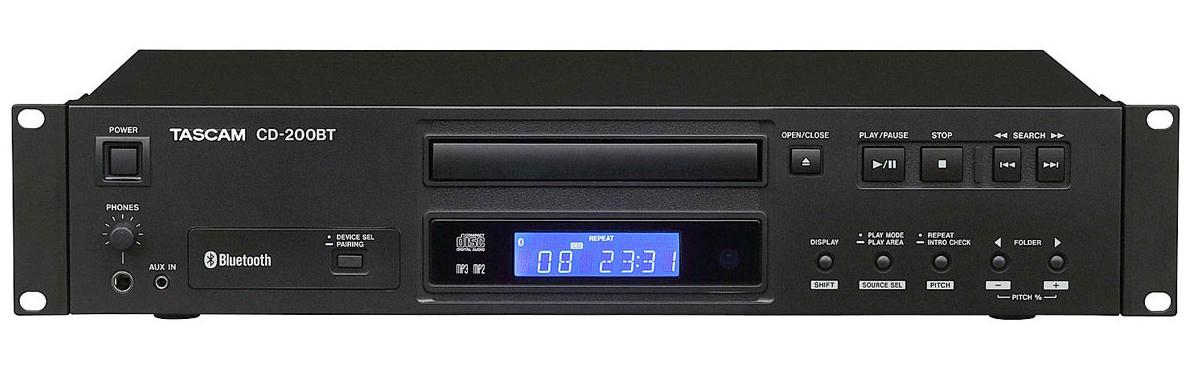

The TASCAM CD-200BT rackmountable 2U high professional CD player also features Bluetooth connection for wireless playback of music files from your mobile device. An aux input is also provided on the front of the unit for other makes of MP3 players too.



The CD player in the CD200BT benefits from a hig quality Tascam developed CD drive for higher reliability and performance and a 10 second shockproof memory ensures smooth playback free from skipping and other disruptions which may be caused by vibrations or knocks. MP3 and WAV file playback is also supported from CD media.



A wireless remote control is also included.



  • High Quality CD drive designed for audio by TEAC
  • 10-second shockproof memory prevents skipping from vibrations and other causes
  • CD drive supports playback of CD-DA and data CD (WAV/MP3/MP2)
  • Supports CD text and ID3 tags allowing text information such as artist name and album names
  • Three playback modes (continuous, shuffle and program )
  • Repeat playback（single, all）
  • Folder playback function that allows limiting to only specified folders (data CDs)
  • Possible to skip playback folders (data CDs)
  • Folder repeat playback (data CD)
  • Switch between display of track elapsed time, track and disc remaining time (audio CDs)
  • +/-14% pitch control function (audio CDs and data CDs) *When pitch control playback is used for data CDs (WAV/MP3), the sound may be cut.
  • Intro check function can be used to play the first 10 seconds of songs in order

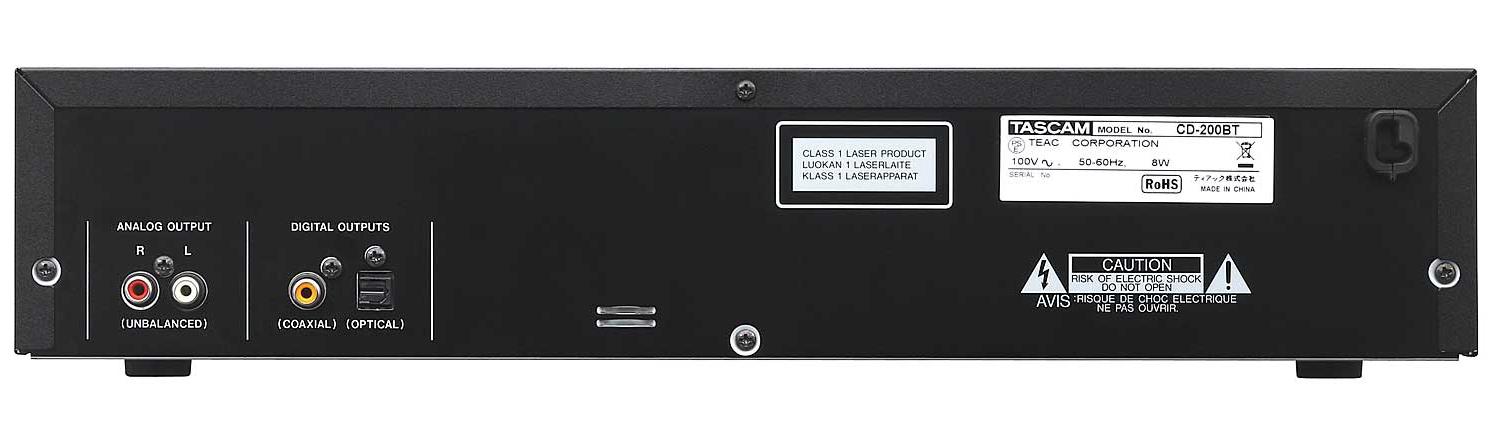

  • RCA analog outputs and COAXIAL/OPTICAL digital outputs (S/PDIF)
  • Stereo mini jack input on the front panel for connecting other portable audio devices
  • 2U EIA rack-mount size

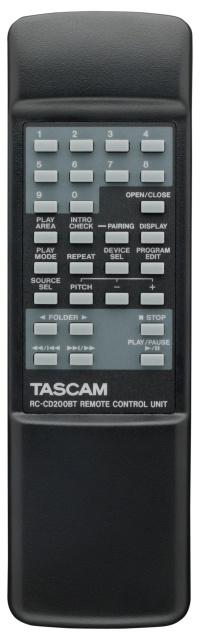

  • Wireless remote control with 10-key access included
  • Headphone output
  • RoHS certified
2U bluetooth CD Pitch
List Ex VAT: £316.66
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Playback media CD, CD-ROM, CD-R, CD-RW(12cm/8cm)
Playback format
CD-DA Stereo, 44.1kHz, 16bit
WAV Stereo, 8k / 16k / 32k / 11.025k / 22.05k / 44.1k / 12k / 24k / 48kHz, 8/16bit
MP2 Stereo, 32k / 44.1k / 48kHz, 32kbps - 384kbps
MP3 Stereo, 32k / 44.1k / 48kHz, 32kbps - 320kbps, VBR
Analog audio input
Connector 3.5mm (1/8") stereo mini jack
Input impedance 22k ohms
Nominal input level -20dBV
Maximum input level -4dBV
Analog audio output
UNBALANCED
Connector RCA pin-jack
Output impedance 200ohms
Nominal output level -10dBV(0.32Vms)
Maximum output level +6dBV(2.0Vms)
COAXIAL
Connector RCA pin-jack
Output impedance 75ohm
Format IEC60958-3(S/PDIF)
OPTICAL
Connector TOS(JEITA RC-5720C)
Format IEC60958-3(S/PDIF)
PHONES
Connector 6.3mm(1/4") stereo phone jack
Maximum output level 20mW + 20mW or more(THD+N 0.1% or less, into 32ohms loaded)
General
Power AC230V, 50Hz (U.K./Europe)
Power consumption 15W
Dimensions 481(W) x 94.5(H) x 298(D)mm
Weight 5.2kg (11.5 lb)
Standard accessories Wireless remote controller, AA battery x2, Rack mounting screw, Warranty card, Owner's manual
Audio Performance
Frequency Response 20Hz-20kHz, +/-1dB(playback, JEITA)
Distortion 0.01% or less (during playback, JEITA)
S/N Ratio 90dB or more(playback, JEITA)
Dynamic Range 90dB or more(playback, JEITA)
Channel Separation 90dB or more(playback, JEITA)
