Electro-Voice EVID C8.2

There is a long lead time on these speakers coming into the UK - please contact us for more details.
Alternatively, please see the Bosch LC2-PC30G6-8 which has identical specifications with the addition of fire-rated terminals.

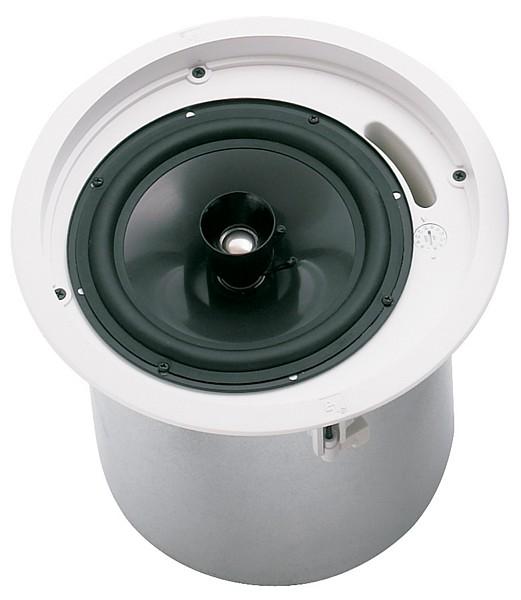

The Electrovoice EVID C8.2 is a dual impedance 8", two way, coaxial ceiling speaker. SOLD BY AND PRICED PER PAIR.

This ceiling speaker system has excellent full range sound quality with an extended bass response thanks to its specially tuned enclosure and 8" woofer.

The 1" waveguide coupled tweeter gives smooth controlled coverage out to 18 kHz.

Fitted with a integrated transformer for 70 V, 100 V, or 8 Ω use with front-panel mode / wattage selector.

Perfect for installations where a flush mount design is desired but demand for high quality audio exists. Features a 4-point mounting system which makes installations fast and easy.

Complete with mounting support ring and tile rails. No additional accessories needed for most installations. A low profile version is also available for installations where space is an issue - see C8.2LP.

  • Ported enclosure for extended bass response
  • Waveguide-coupled 1-inch titanium-coated tweeter
  • Full-bandwidth overload protection
  • Integrated transformer for 70 V, 100 V, or 8 Ω use
  • Front-panel mode/wattage selector
  • Safe, easy installation with included tile bridge and mounting ring
  • White semi-gloss perforated grille
  • Complete package, requires no additional accessories
List Ex VAT: £306.40
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Chassis Size

203.2 mm (8")

Color

White (paintable surface)

Coverage (Nominal -6 dB)

110 conical

Diameter (Max)

270 mm (10.63")

Input Formats

8 Ω, 70 V, 100 V

Mounting Systems

Integrated 3-point toggle anchors

Speaker Type

Ported cabinet, internally damped, two-way (passive crossover included)

Transformer

Yes

Transformer Taps (Transformer Version Only)

(1.88 - 70 V only), 3.75, 7.5, 15, 30

Frequency Response (-10 dB)

50 - 20000 Hz

Sensitivity 1 W/1 m

91 dB

System Power Handling (Continuous/Program/Peak)

100 Watts Overload Protected

LF Transducer

8-inch polypropylene cone

HF Transducer

1-inch (25 mm) Ti Mylar Laminate Dome

Enclosure Material

Steel enclosure and UL94V-0 rated baffle and bezel

Outdoor

No

Grill

Powder-coated steel

Height

255 mm (10.0")

Weight Net

5 kg (11.02 lbs)
