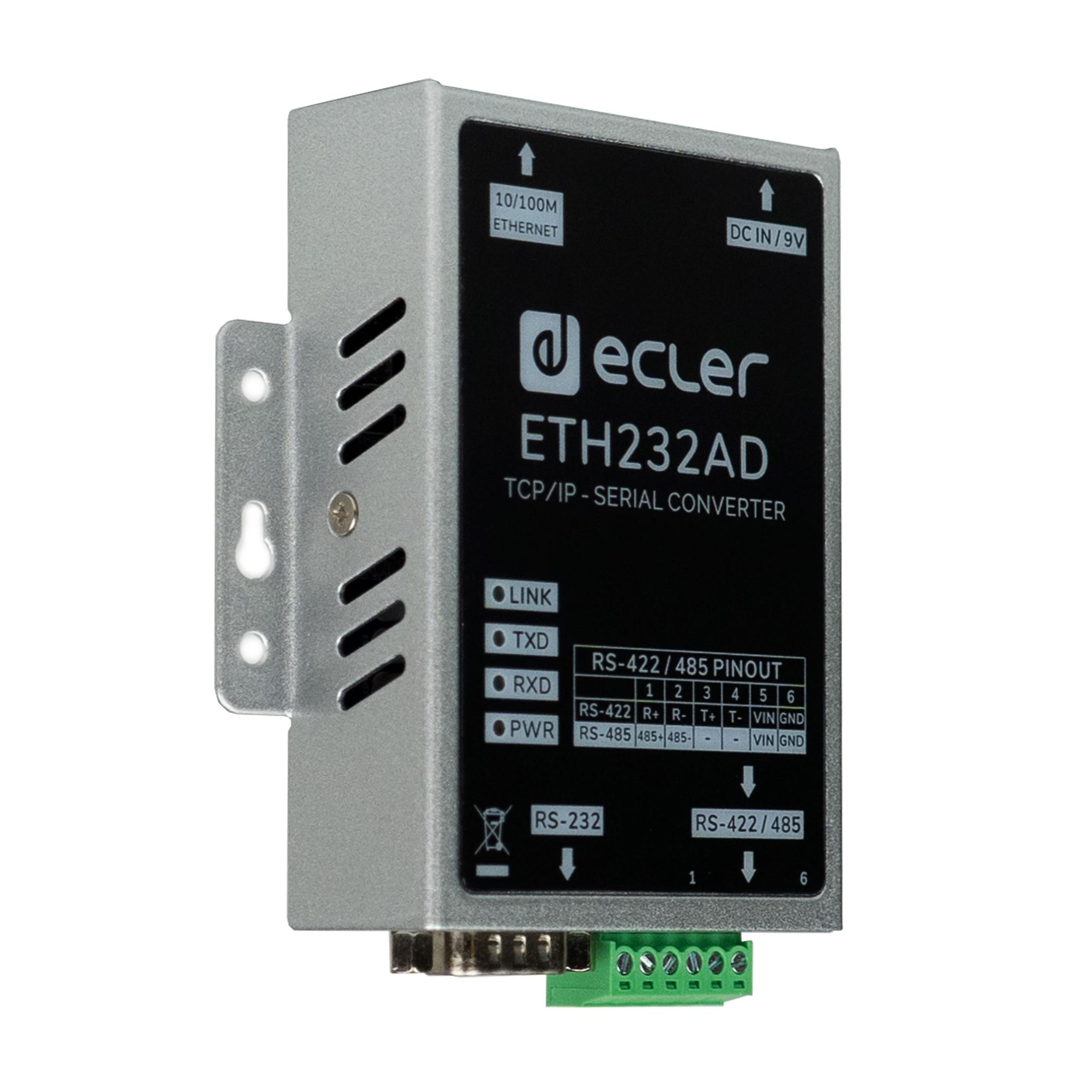

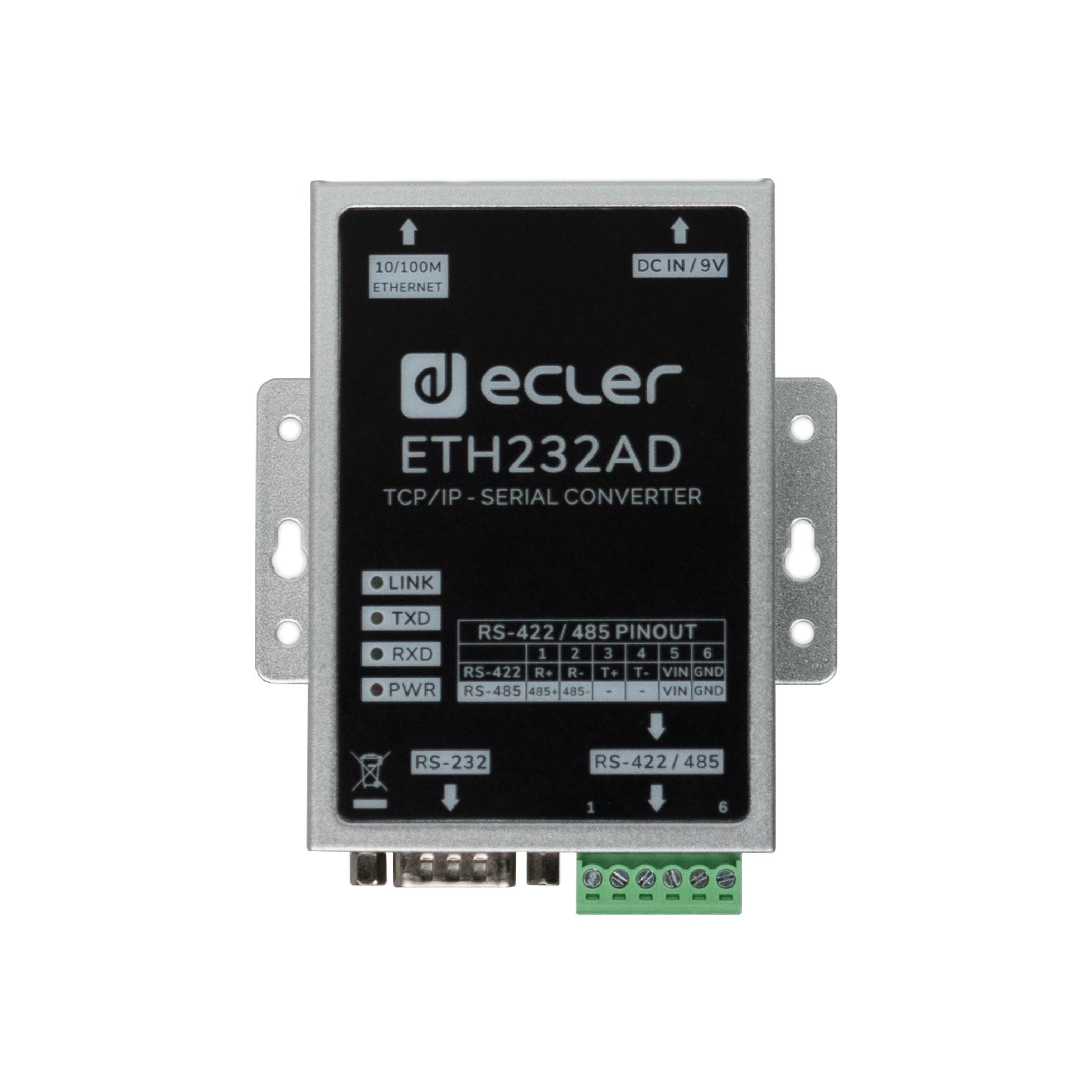

Ecler ETH232AD
The Ecler ETH232AD Ethernet-RS232 interface enables devices with a serial control to be controlled using the Eclernet platform via WEB or Ecler app UCP on smart devices.
With EclerNet Manager its possible to create customized graphical interfaces to send commands to the ETH232AD, which will be responsible for the translation of the network protocol to the RS-232 protocol.
It allows bidirectional transparent transmission between RS-232/422/485 and Ethernet.
The use of the ETH232AD facilitates the control of audio devices such as a CA series amplifier or video devices such as a VEO series selector or any third party device with RS-232 or RS-485 control.

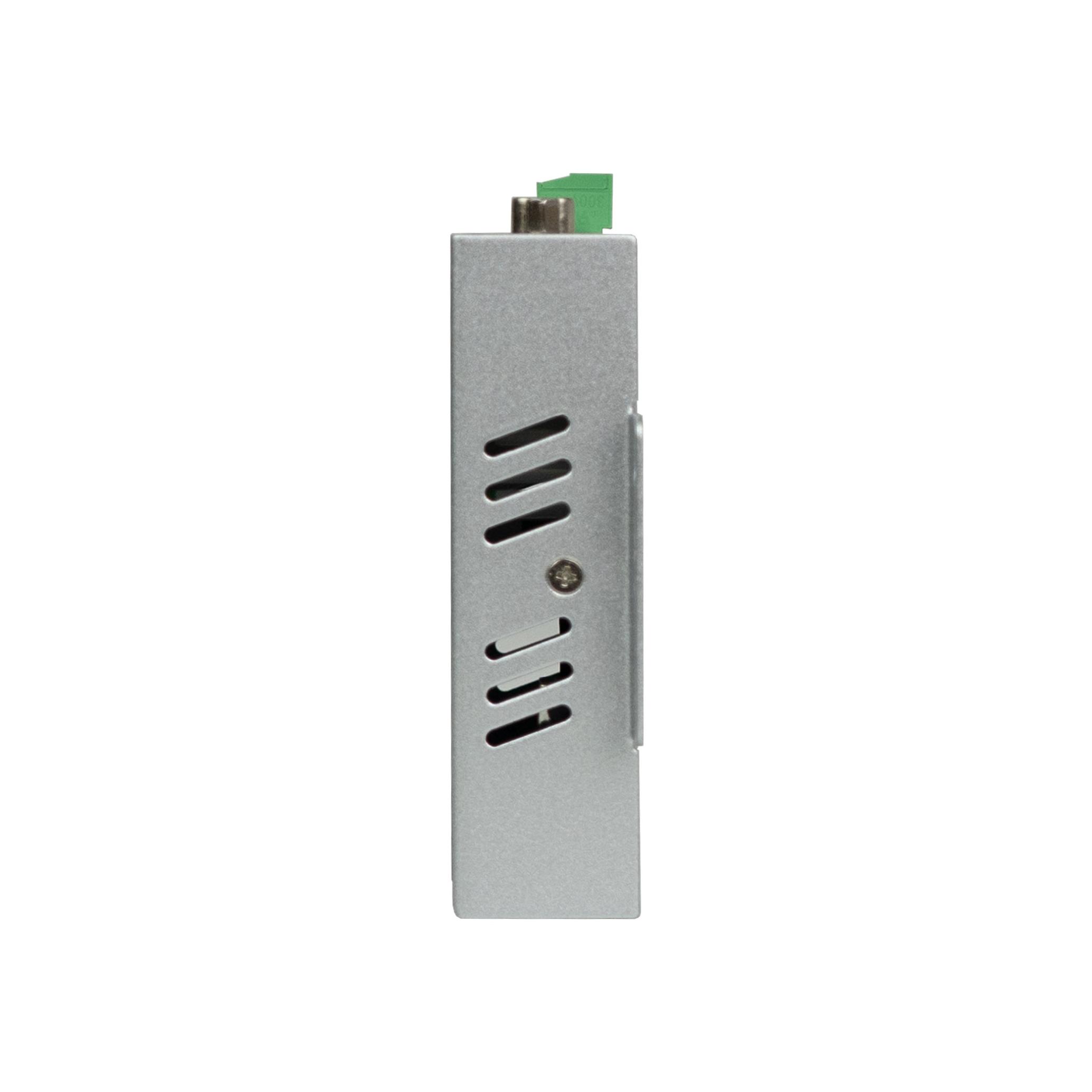

The compact size and integral mounting ‘ears’ with screwholes & keyhole fixings enable the unit to be mounted discreetly.

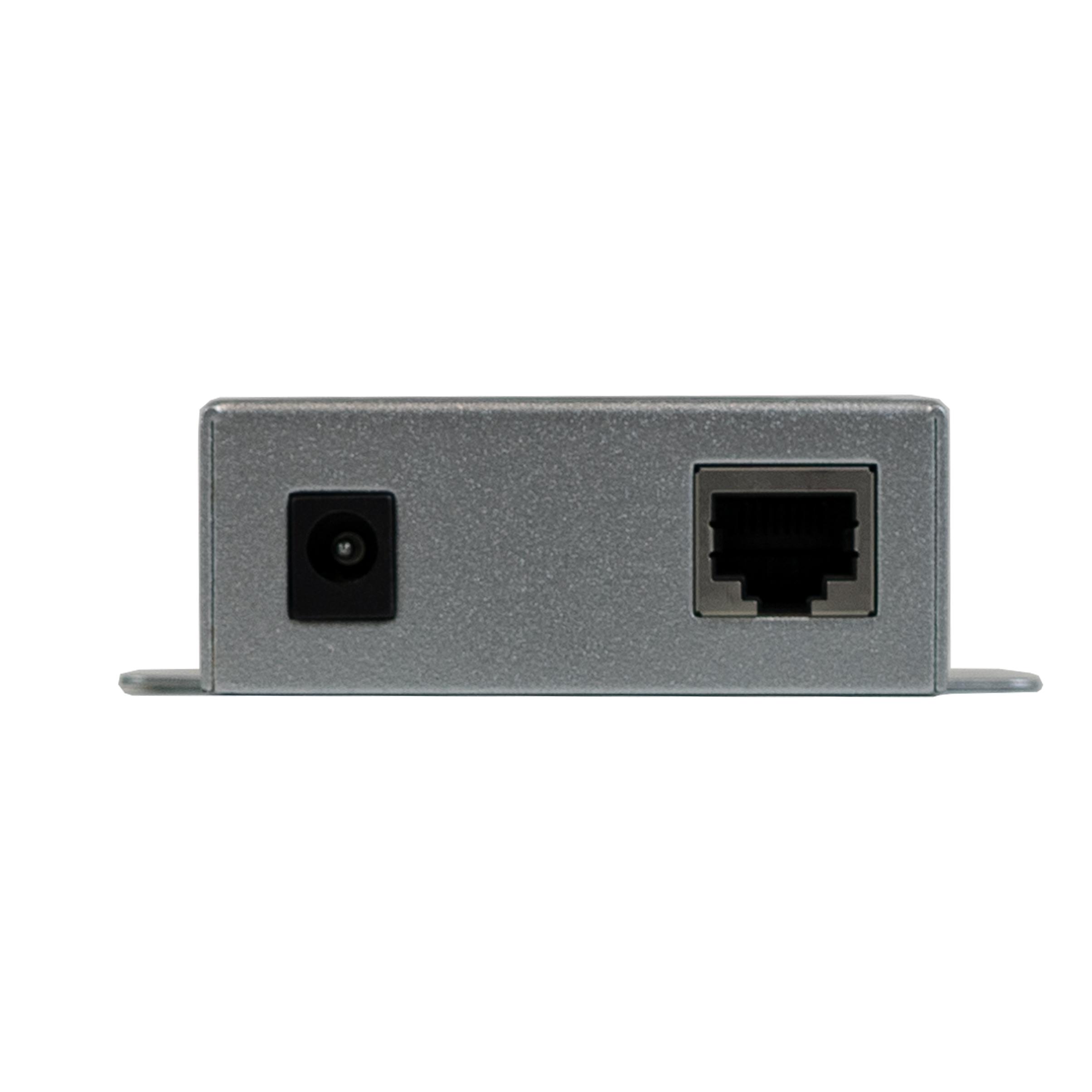

- 3-in-1 RS-232/422/485 interface with 10/100 Mbps Ethernet port
- Supports 4- and 2-wire RS-422 with built-in terminator
- Supports 12-24 VDC power input

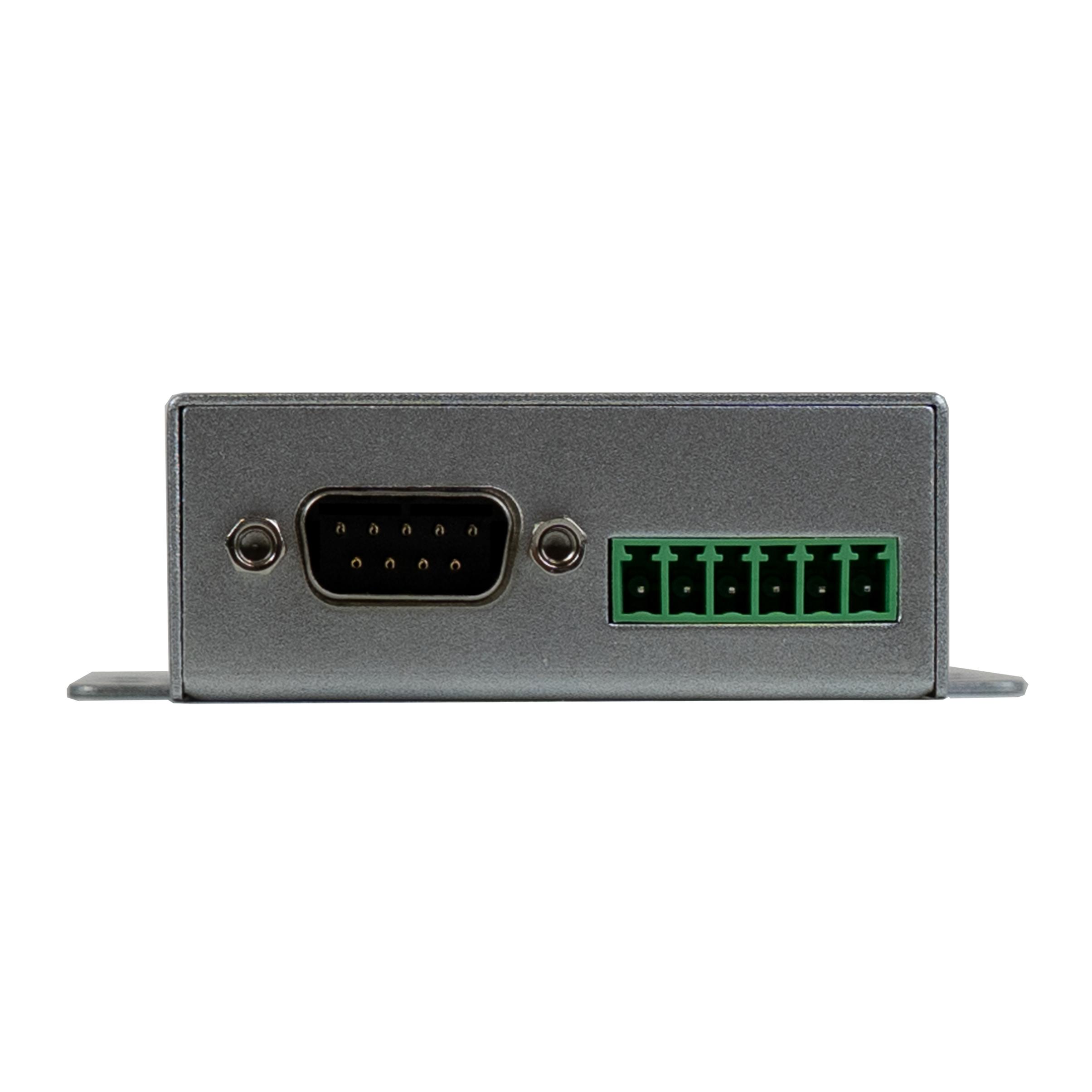

- Euroblock connections for RS-422/485 and DB-9 connections for RS-232
- Supports configuration via web browser
- Supports configuration store and copy for easy deployment
- Supports TCP Server/Client, UDP Server/Client operation modes
- CE, FCC,RoHS
- Warranty: 5 Years.
For further information, please download the Datasheet and/or User Manual.
 |
