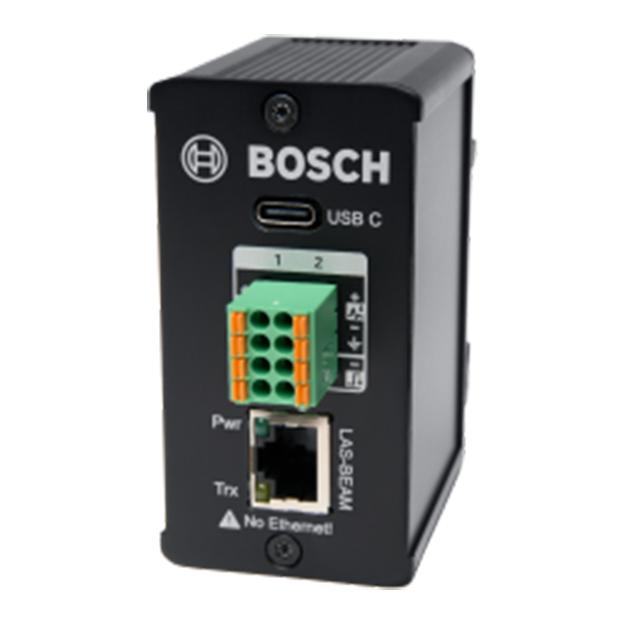

The LAS-BEAM-CON interface is a compact hardware tool acting as the interface between a PC and the LAS-BEAM network.

The LAS-BEAM-CON is essential to use LASBEAM-SW software in online mode, enabling configuration and monitoring of up to 256 units through a single device.

Once connected, users can adjust parameters such as beam settings, equalization, and delay in real time across the columns.

Inputs
The LAS-BEAM-CON interface features two balanced audio inputs that can be routed to the LAS-BEAM columns. The USB-C port is provided for connecting a
configuration and monitoring PC.

Outputs
The RJ45 interface allows for the transmission of RS485 data, two audio lines, and a fault contact over a single cable, which can be daisy-chained to the LAS-BEAM columns.

This interface supports coverage over several hundred meters in the field (depending on the type of cable used).

In the event of a fault, the LAS-BEAM-CON interface will trigger a fault contact to alert third-party systems, such as PA/VA systems.

• Configuration interface for LAS-BEAM series
• 2 line level audio inputs
• Fault contact for triggering PA/VA systems
• DIN-rail mounting option for rack installation
