TOA CS-64

TOA CS-64

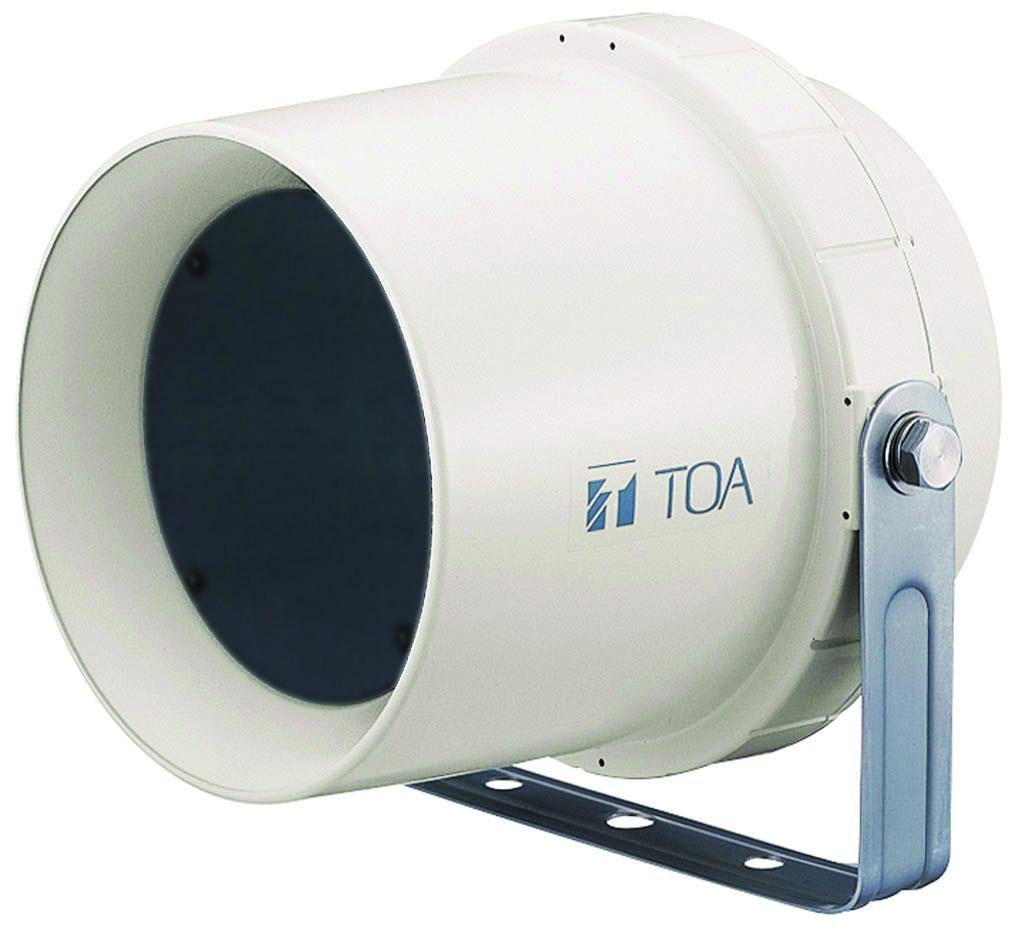

The TOA CS-64 is an exponential horn loudspeaker with excellent directivity characteristics for a uniform and clear sound dispersion.

Rated at 6 watts and suitable only for use on 70 / 100 volt line distributed sound systems. The transformer has tappings at 6 watts, 3 watts and 1 watt, selectable via an external rotary impedance selector switch enabling the impedance to be changed during and after speaker installation.

The lightweight ABS resin enclosure of the TOA CS64 horn speaker is mechanically strong and resistant to impact. The weatherproof polyurethane resin paint and stainless steel mounting bracket and hardware enable the speaker to be used outdoors. Water resistant, rated IP64.

100V IPxx
List Ex VAT: £65.00
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated Power (rms) 6W (100V line)
Impedance

100 V line : 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line : 830 Ω (6 W), 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
SPL (1W/1m) 96dB
Frequency Range (-10dB) 130HZ - 13KHZ
Speaker Component 12 cm cone - type dynamic speaker (treated for splash proof)
Material Horn, cover : .................ABS resin, off - white, paint
Bracket...........................Stainless steel
Punched net .................. Surface treated steel plate, dark – gray, powder coating
Screw.............................Stainless steel
Colour Off-White
Dimensions mm 233 (W) x 224 (H) x 208 (D) mm
Weight (kg) 1.5 kg

DOWNLOADS

TOA CS64, CS154, CS304 Brochure
TOA CS-64 Datasheet
