Signet PDA103i
Signet PDA103i
Click to expand

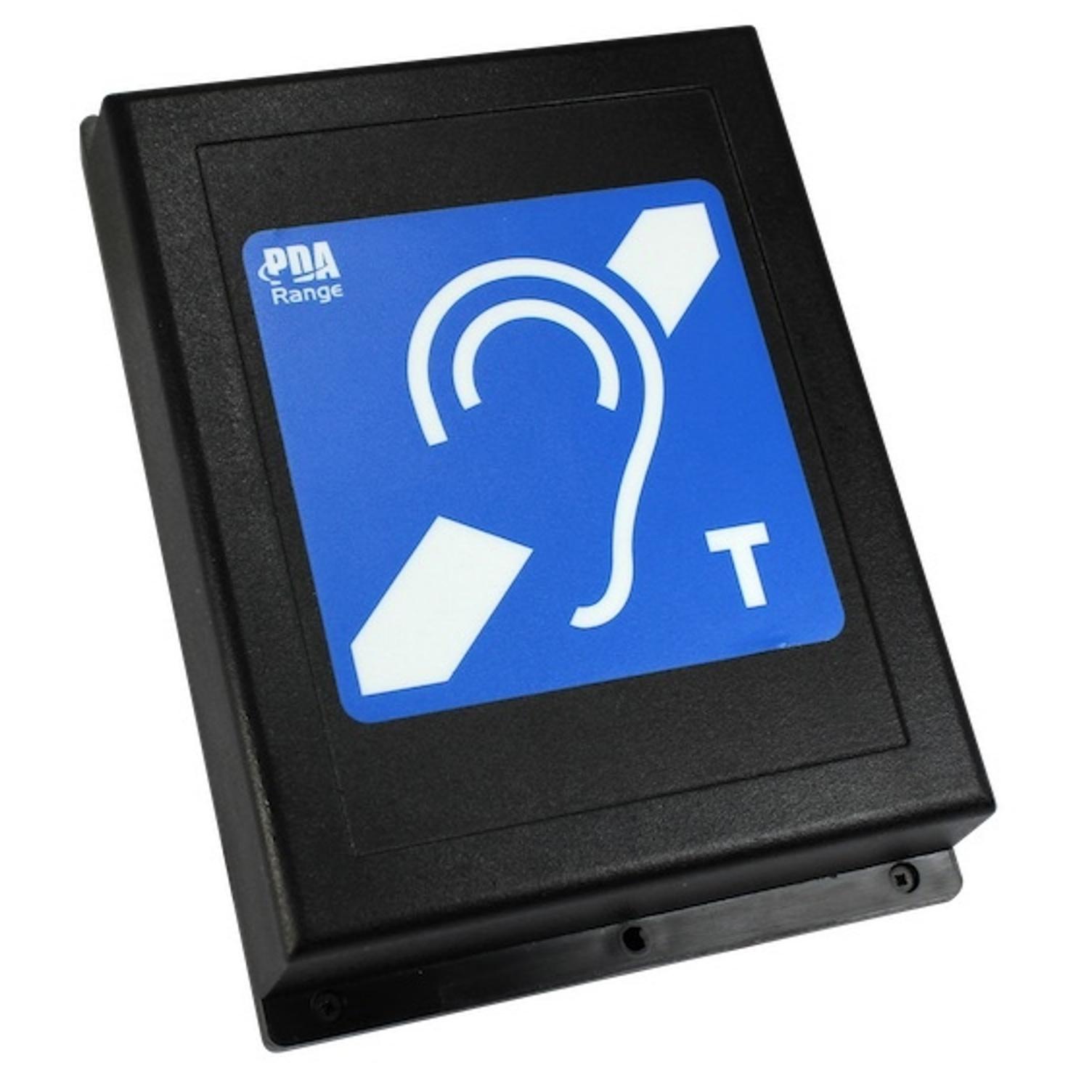

Signet PDA103i

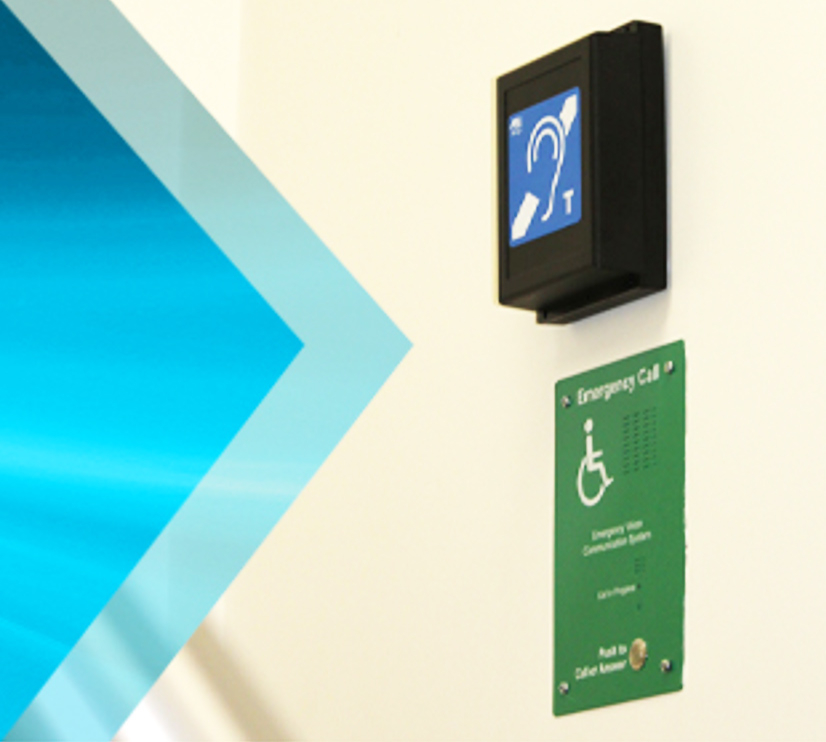

The SigNET PDA103i wall mounted induction loop amp is designed to integrate with disabled refuge, door entry and intercom help points providing an effective loop field area of approximately 1.2m².

This compact looop amp is housed within a rugged surface mount enclosure which is ideal for use indoors or outdoors - IP65 rated.

The PDA103i helps satisfy the integrated loop requirements of the 2018 revision of BS 8300 and exceeds the requirements of PD IEC TR 63079, BS7594 & EN60118-4 when correctly installed.

  • Adjustable controls allow the amplifier’s input and output stages to be set to suit the exact characteristics of the application.
  • State-of-the-art audio processor helps suppress loud noises, hisses & clicks
  • Includes internal Limit, Peak, Loop Fault and Power On indicators
  • Warranty: 5 Years
Loop
List Ex VAT: £277.20
Log in for Trade Prices
CONTACT US

SPECIFICATIONS

Rated supply voltage and frequency:

110 to 240VAC @ 50/60Hz

Coverage

1.2m² approx

Maximum r.m.s. output current:

4A @ 1kHz

Sensitivity level controls:

Mic, Line, Outreach, Metal Compensation, Level (all rotary pot controls are screwdriver adjustable).

LED indicators:

Limit (Red), Peak (Red), Loop Fault (Red), Power On (Green).

Connections:

Mic (3.5mm mono jack socket); Line (3.5mm stereo jack socket); Digital; Outreach (4-way pluggable screw terminal; DC in; Loop (2-way pluggable screw terminal).

Dimensions (H x W x D):

290mm x 220mm x 100mm (including controls)

Weight:

0.8kg (amp only)

IP Rating (to EN 60529):

IP65

DOWNLOADS

Signet PDA103i User Manual
SigNET Guide to Assistive Listening
Signet PDA103i Datasheet
