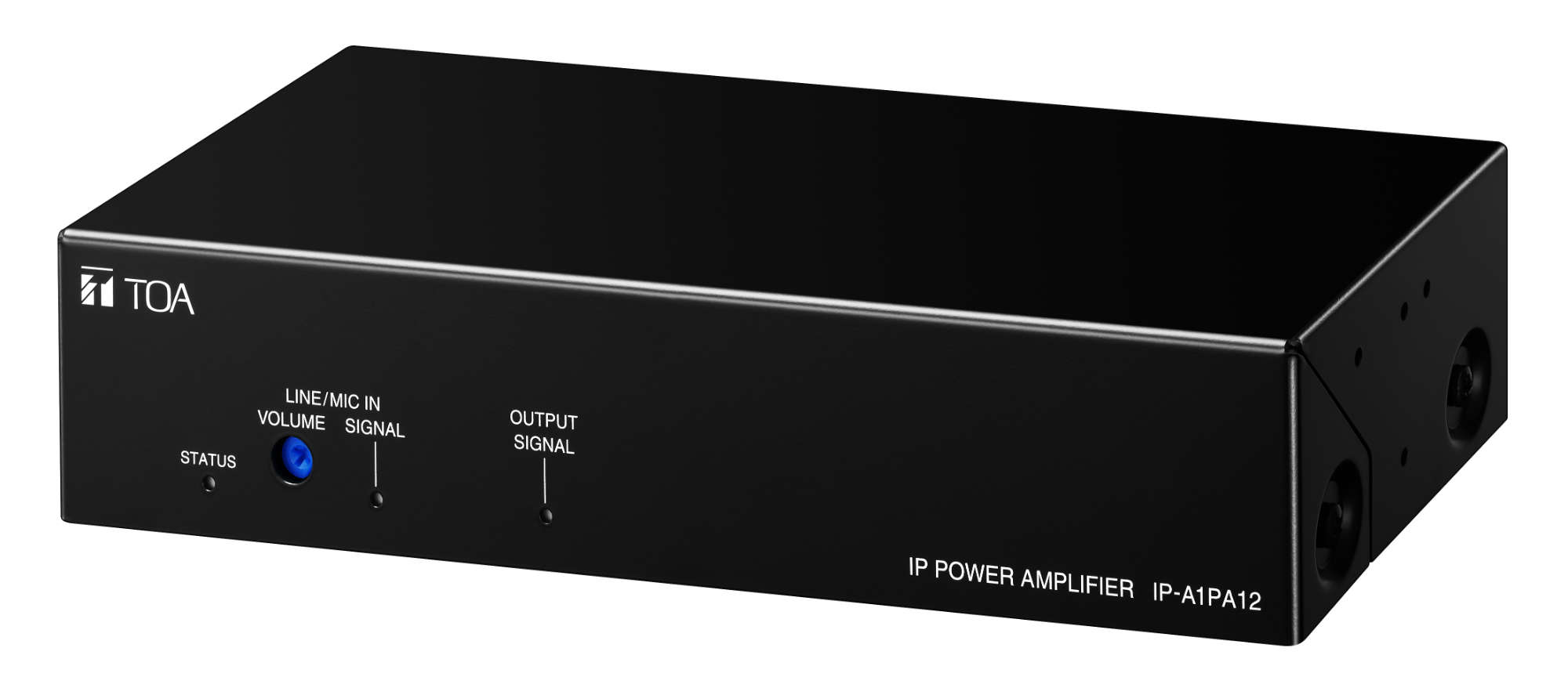

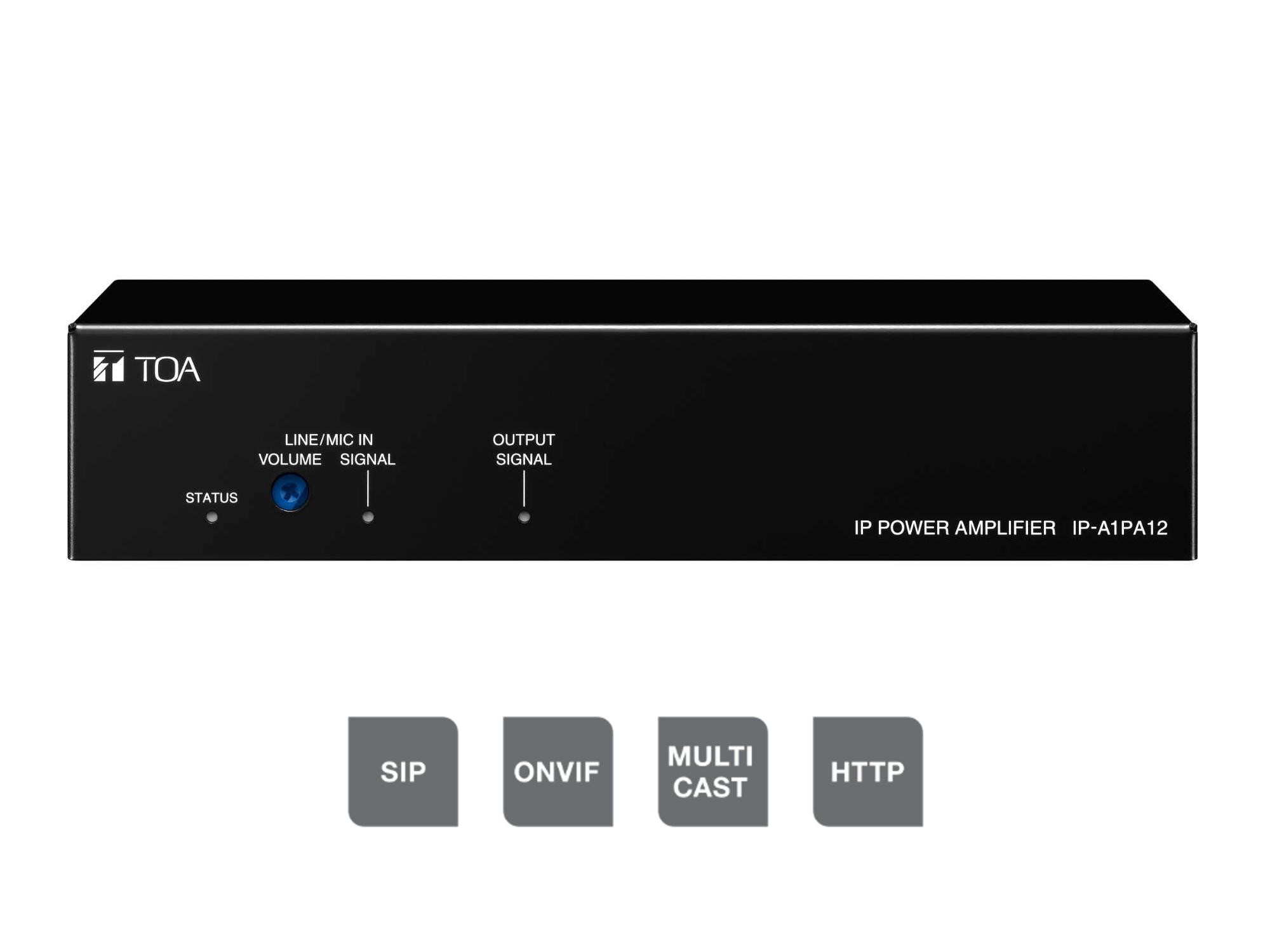

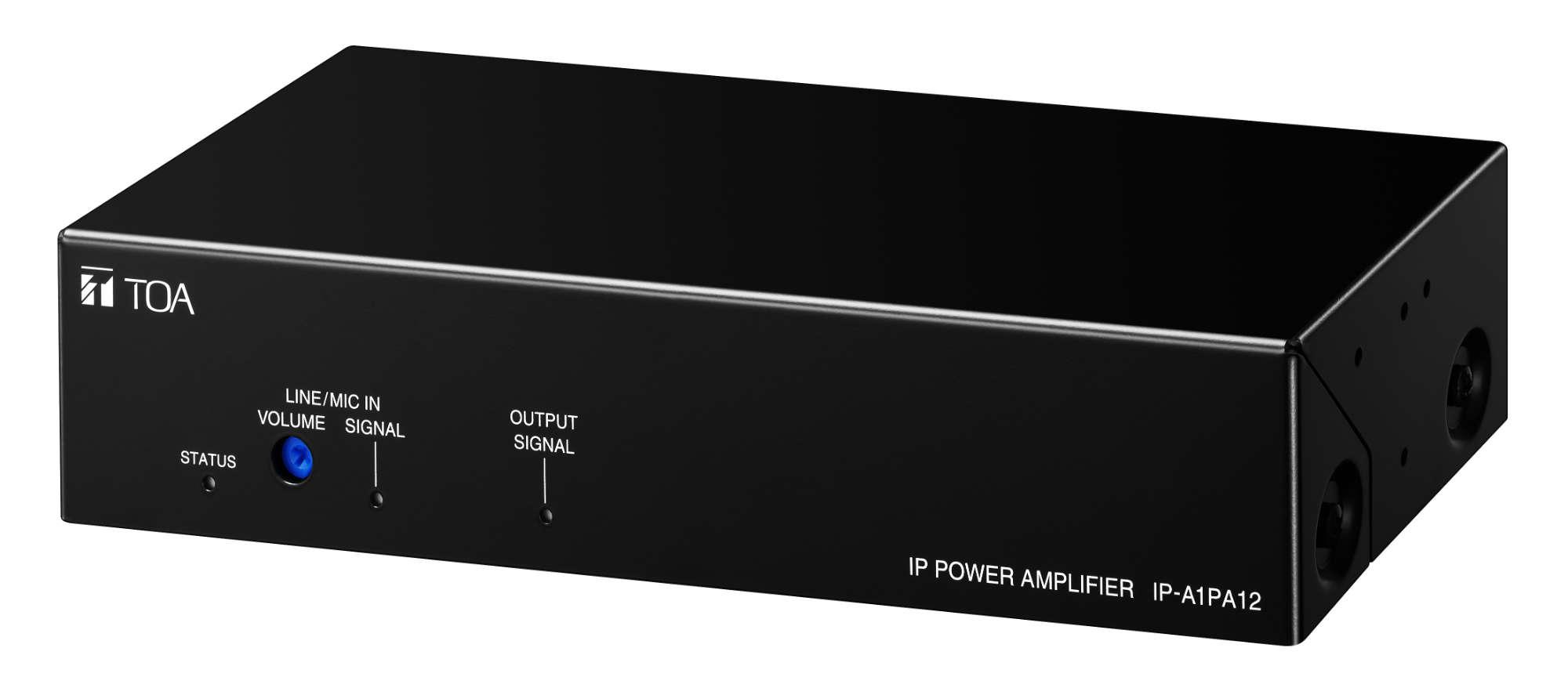

TOA IP-A1PA12
The TOA IP-A1PA12 IP Power Amplifier is based on open standards to connect straight into standard IP networks and can be easily integrated into your video management system (VMS) or SIP-based communication system. A single standard network cable provides both connectivity and power.
An upgrade to Audio over IP need not be expensive as existing speakers and other audio equipment can still be used. The IP-A1PA12 enables existing conventional high impedance loudspeakers or local PA systems to be integrated into your network, with one amp connected to many speakers simultaneously.
Additionally, the IPA1PA12 has a built-in 12 watt amplifier for local connection of a small number of loudspeakers.
Furthermore, PA or BGM systems without SIP or ONVIF* interface can now be integrated into your network solutions.
For flexible group paging, this TOA IP power amp can also be addressed via multicast, enabling audio paging into groups or larger zones of IP audio devices simultaneously.
Application Examples:
Seminar rooms with a multiple loudspeakers can be easily integrated into VMS or SIP telephone systems with higher cost-efficiency compared to setups consisting entirely of IP speakers. Retail chains with existing local PA/BGM systems can be integrated into IP solutions providing network control and centralized management opportunities.
- Receive SIP audio, ONVIF* audio and multicast (up to 20 addresses)
- API for HTTP command reception
- Local broadcast using internal audio files or local audio source
- Different playback programs (repeat, duration, weekly timer)
- 12 W built-in amplifier

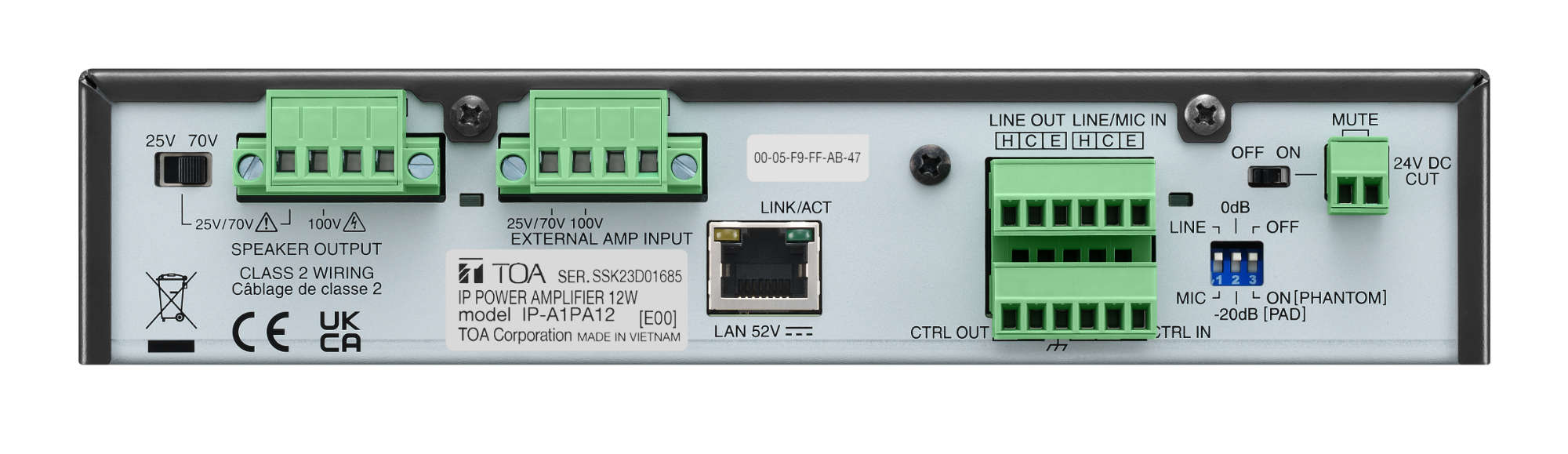

- 1 speaker output (100 / 70/25 V), 1 line audio output
- 1 external amplifier input (100/70/25 V)
- 1 audio input (line/mic and phantom power selectable)
- 2 control inputs, 1 mute control input and 1 control output
- PoE+ -powered
- Warranty: 1 Year
 |
*ONVIF is a registered trademark of ONVIF Inc.
