TOA IP-A1SC15

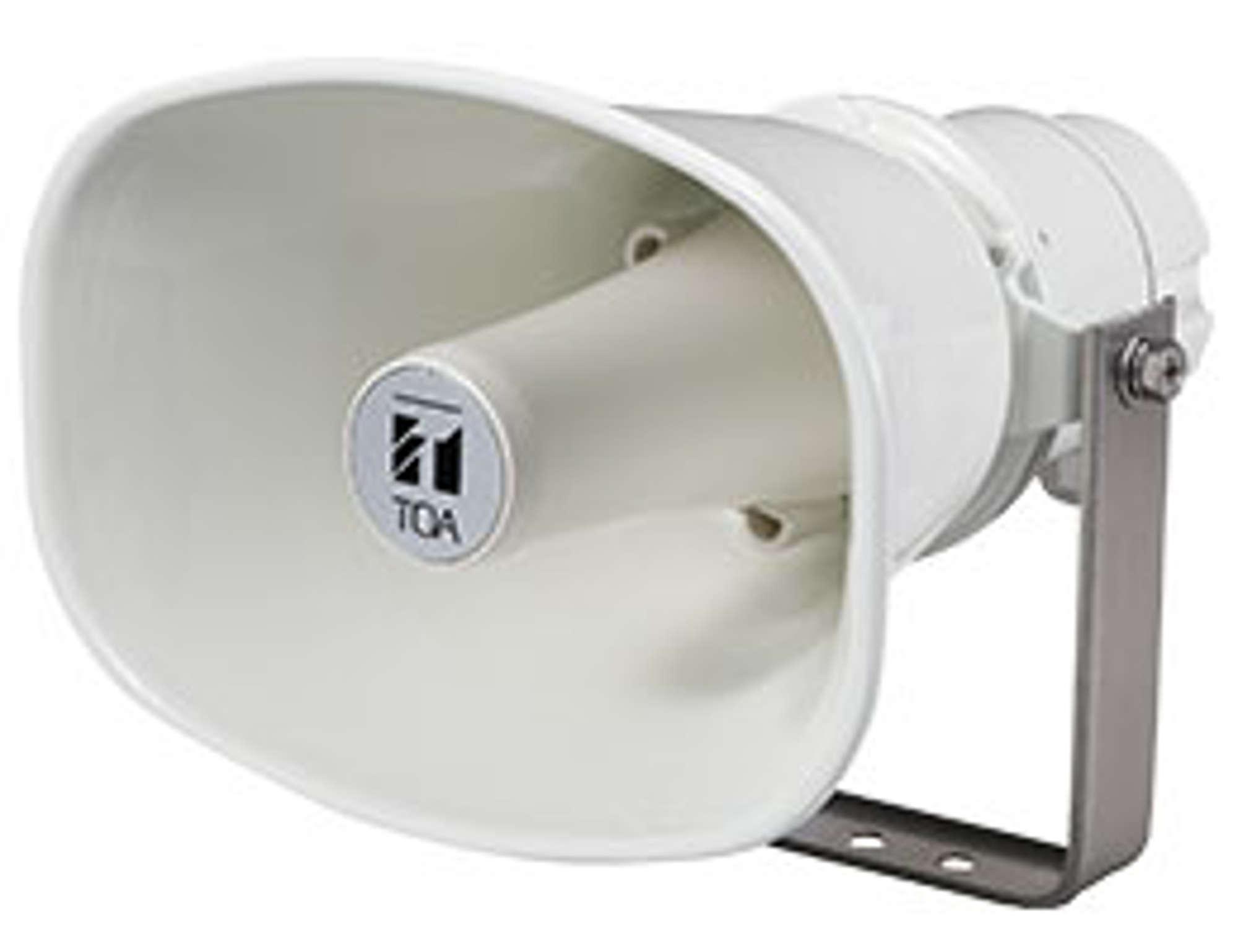

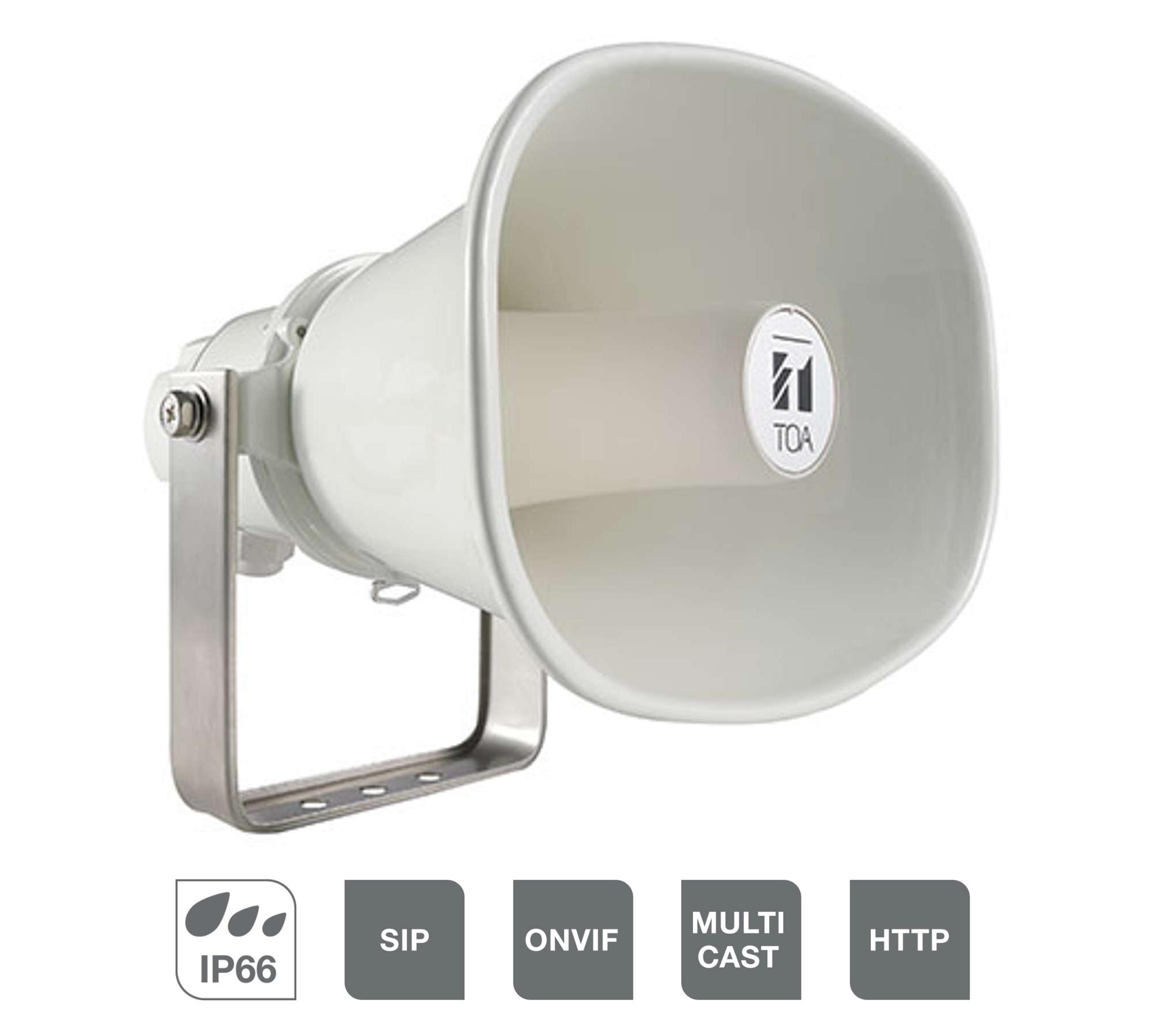

The TOA IP-A1SC15 IP horn speaker connects directly into standard IP networks enabling integration into your video management system (VMS) or SIP-based communication system.
With high SPL, this AoIP horn loudspeaker has a built-in 15W / 8W (PoE+ / PoE) power amplifier and is mounted and positioned using the included U-shaped wall mounting bracket.
Suitable not only for indoor use but can be used as an outdoor speaker too as it’s water resistant with an IP rating of IP66.
A single standard network cable provides both power and connectivity with your network.
The IP-A1SC15 horn can receive SIP audio, ONVIF* audio and multicast audio (up to 20 addresses). It’s ideal for broadcasting crystal clear live speech announcements but also features an integral 80MB audio file memory for up to 20 WAV/MP3 pre-recorded voice messages which can be manually or automatically triggered by IP cameras, image sensing or motion detection video systems.
Easy to customize over API (Application Programming Interface): Adapt the individual volume to the environmental noise level and optimize it to time of day, distance, and degree of emergency.
Flexible Group Paging: The IP-A1PC238 IP Ceiling Speaker can be addressed via multicast enabling audio paging into groups of IP devices simultaneously.
Application Examples:
VMS calls and paging into outdoor areas as construction sites, company or private properties, or parking spaces, as well as alert/every-day paging into outdoor areas of public buildings as schoolyards, hospitals or office buildings. The IP-A1SC15 horn speaker can be integrated into security poles.
- 124 dB max. SPL
- 15 W (PoE+) / 8 W (PoE) built-in amplifier
- Operating temperature from -30 °C to +55 °C
- IP66 rating for outdoor installations
- API (HTTP commands)
- Audio file storage (20 files, total 80 MB, WAV/MP3)
- Individual volume level adjustment to each audio source to ensure uniform and harmonized output
- Different playback programs (repeat, duration, weekly timer)
- Warranty: 1 Year
*ONVIF is a registered trademark of ONVIF Inc.
 |
