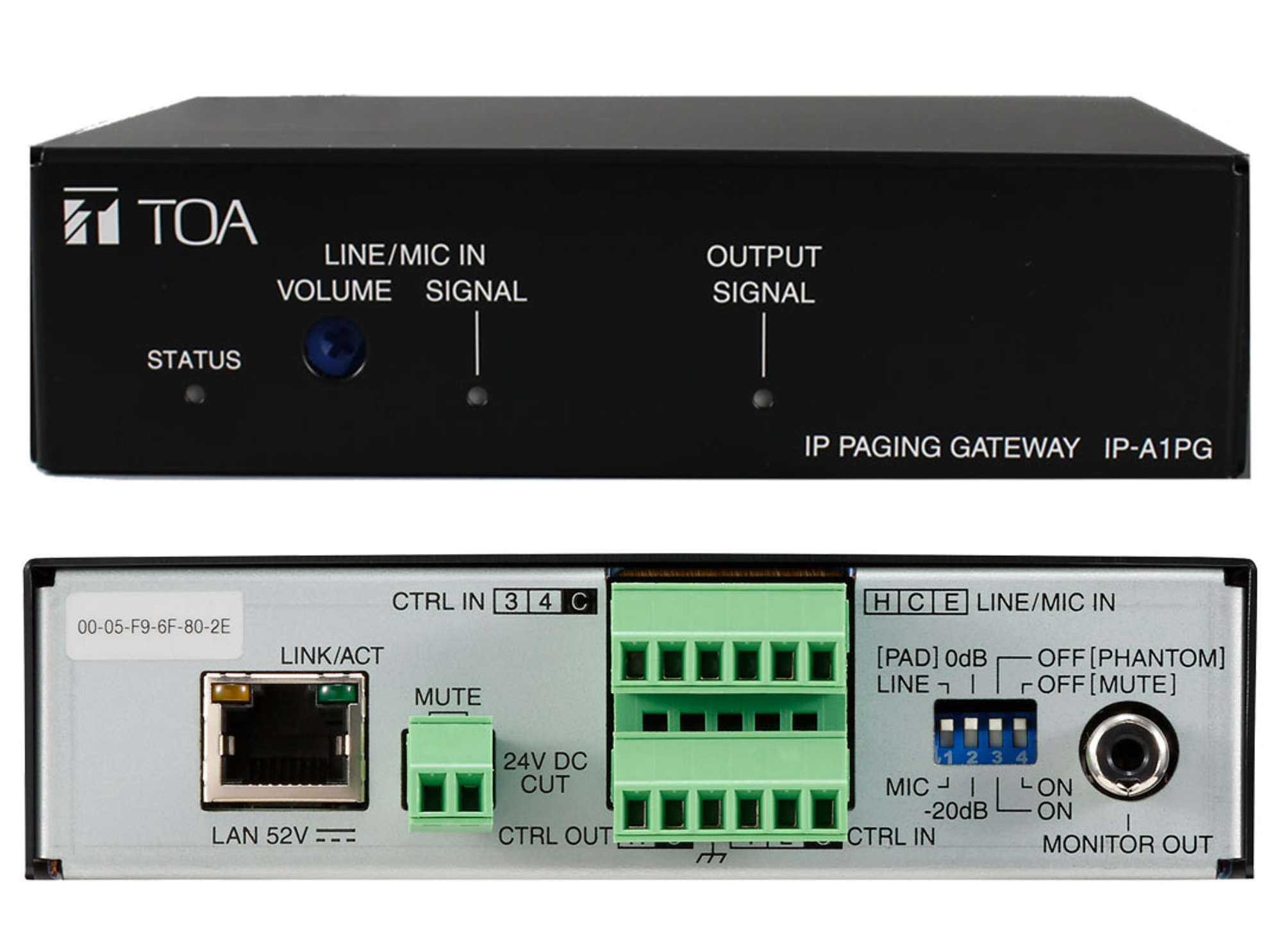

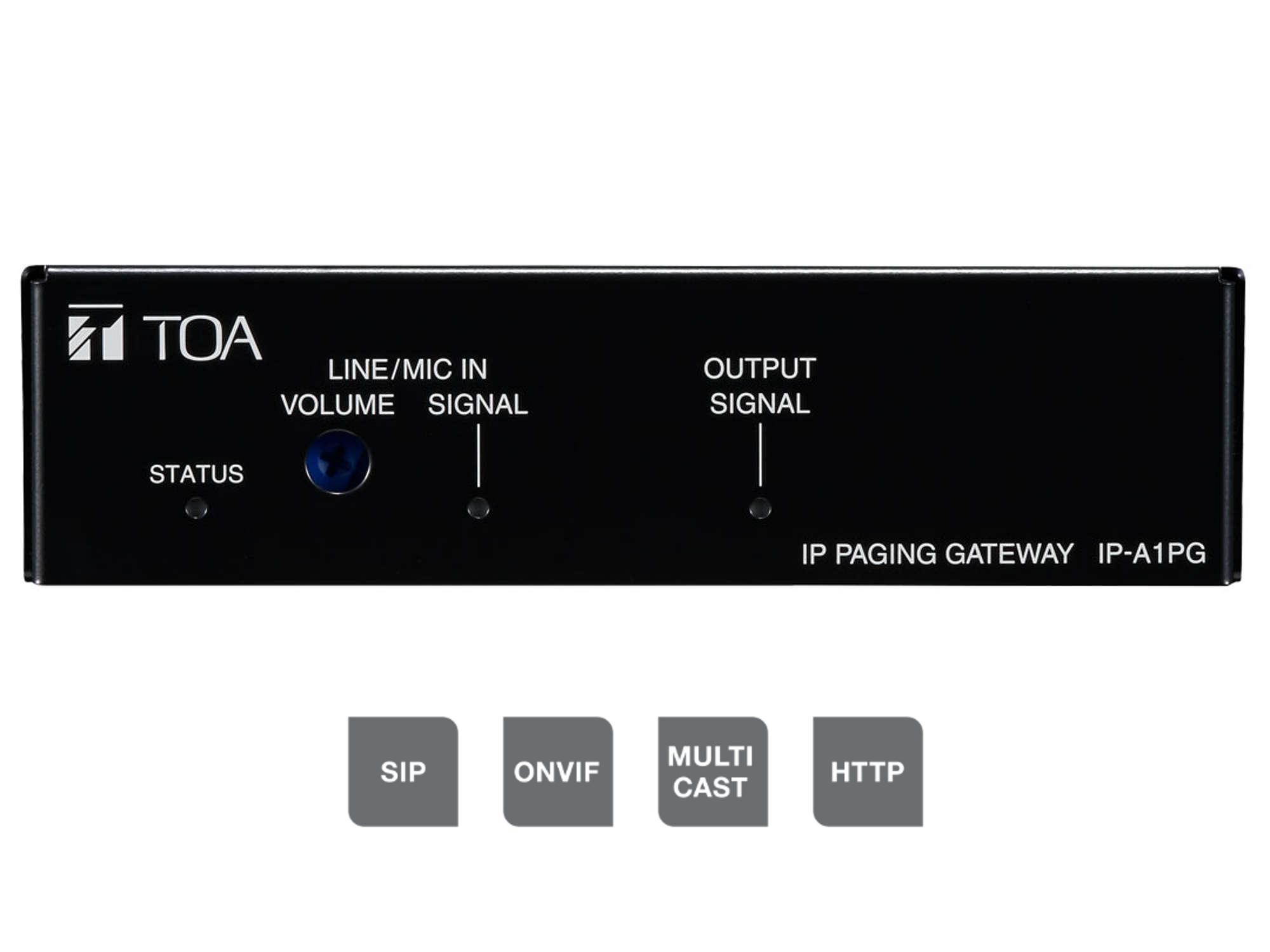

TOA IP-A1PG
The IP-A1PG IP Paging Gateway is a broadcasting terminal for the TOA IP-A1 network audio system. It not only provides an Aux input for background music, scheduling of pre-recorded messages and event broadcasting by contact input, but it also converts SIP, ONVIF & Aux inputs to Multicast Streaming and provides priority control of multiple microphone broadcasts where several microphones are connected to the network
Based on open standards, the IP-A1PG IP Paging Gateway connects straight into standard IP networks and can be easily integrated into your video management system (VMS) or SIP-based communication system. A single standard network cable provides both connectivity and power.
Flexible Group Paging: The IP-A1PG IP Paging Gateway converts SIP/ONVIF* calls into multicast streams for delivering the group paging function also to systems that are not multicast-ready.
Furthermore, it provides a multicast-ready audio input with the ability to send sets of HTTP commands into the network, triggered by the API or control inputs. Connect a microphone or audio players for BGM and distribute this audio to various IP devices in the network simultaneously.

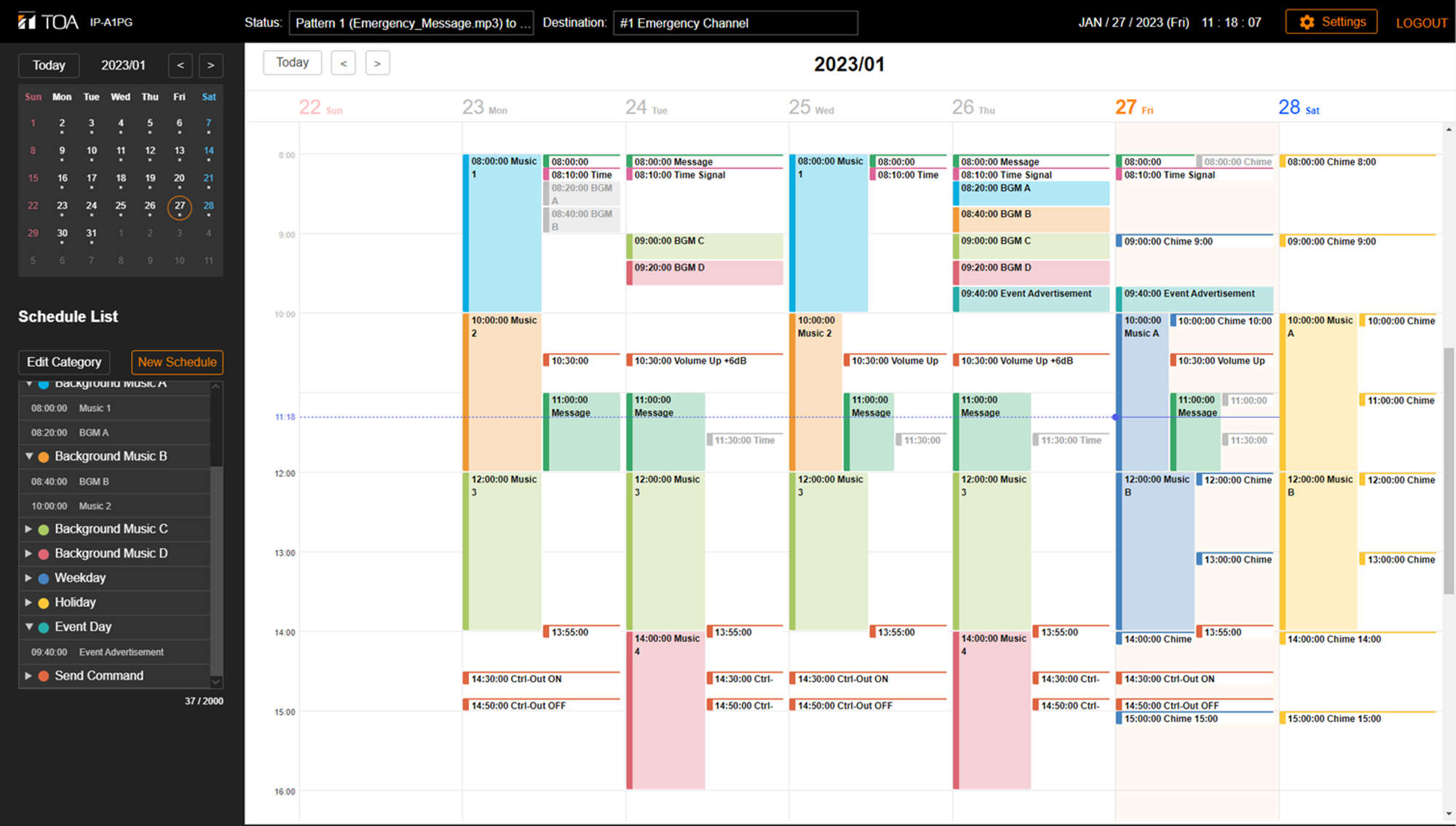

The easy-to-use, intuitive scheduler, accessed by built in web interface, enables the creation of flexible time schedules for broadcasting prerecorded messages / audio files stored internally.
Application Examples:
Office buildings with a video management system and the need to perform paging into a customized combination of rooms/zones: The IP-A1PG converts the audio calls of the VMS into multicast to address groups of loudspeakers in single rooms, entire floors or the entire building.
- Convert SIP audio, ONVIF* audio, internal audio files or local audio source into multicast streaming (up to 20 addresses)
- System mute function to mute all broadcasts of IP-A1 series devices within the same network
- 1 local audio input (LINE/MIC and phantom power selectable)
- API (HTTP commands)
- Transmission of up to 10 HTTP command sets (consisting of up to 20 commands each)
- Audio file storage (20 files, total 80 MB, WAV/MP3)
- 5 control inputs and 1 control output
- PoE-powered
- Warranty: 1 Year
 |
*ONVIF is a registered trademark of ONVIF Inc.
