TOA IP-A1MP

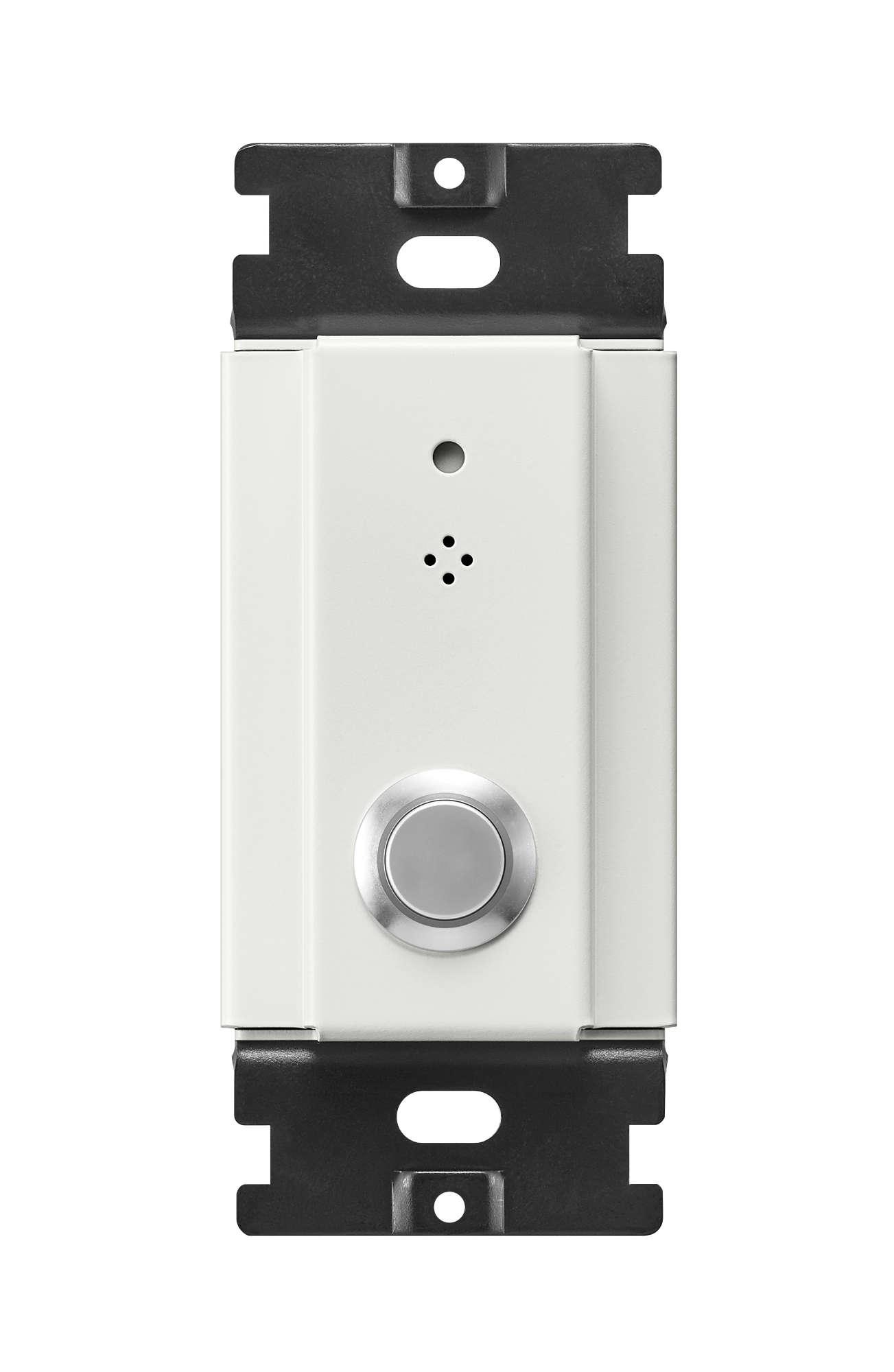

The TOA IP-A1MP Push to Talk microphone panel is a simple analogue call station including a microphone, call button and call indicator LED. It has been designed to be connected to either the IP-A1AF IP audio interface or the IP-A1PA12 IP power amplifier.

A ceiling or wall loudspeaker can be added to create full SIP call station, combining intercom and public address and allowing two way conversations to SIP telephones or VMS operators.

Not only can the IPA1MP microphone panel be used with other IP-A1 devices but analogue audio and control connections enable it to interact with a wide range of PA or other systems.

  • Microphone incl. preamplifier
  • Call button
  • Indication LED
  • 1 line audio output
  • 1 control input and 1 control output
  • Powered via phantom power
  • Warranty: 1 Year
List Ex VAT: £190.00
Log in for Trade Prices
CONTACT US

3D View: Click on the play button, then select

the fullscreen icon for a better view.




This training Webinar will hopefully answer all your questions,

but please get in touch if you need any further information.

SPECIFICATIONS

Power source

Phantom power

Power / current consumption

8 mA or less

Frequency response

100 Hz - 10 kHz

Microphone type

Electret condenser microphone

Directivity

Omnidirectional

Audio output

1x line (balanced, push-in terminal block)

Control input

1x no-voltage make contact (push-in terminal block)

Control output

1x no-voltage make contact (push-in terminal block)

Controls

1x push switch (momentary type)

Operating temperature

−20 °C to +55 °C

Finish

Steel plate, ABS resin, white

Dimensions

44.6 x 107 x 29 mm (W x H x D)

Weight

170 g

DOWNLOADS

TOA IP-A1MP Datasheet
TOA IP-A1MP Installation Manual
TOA IP Receiving Device Set Up Manual
TOA IP-A1 Series Feature Comparison Chart
