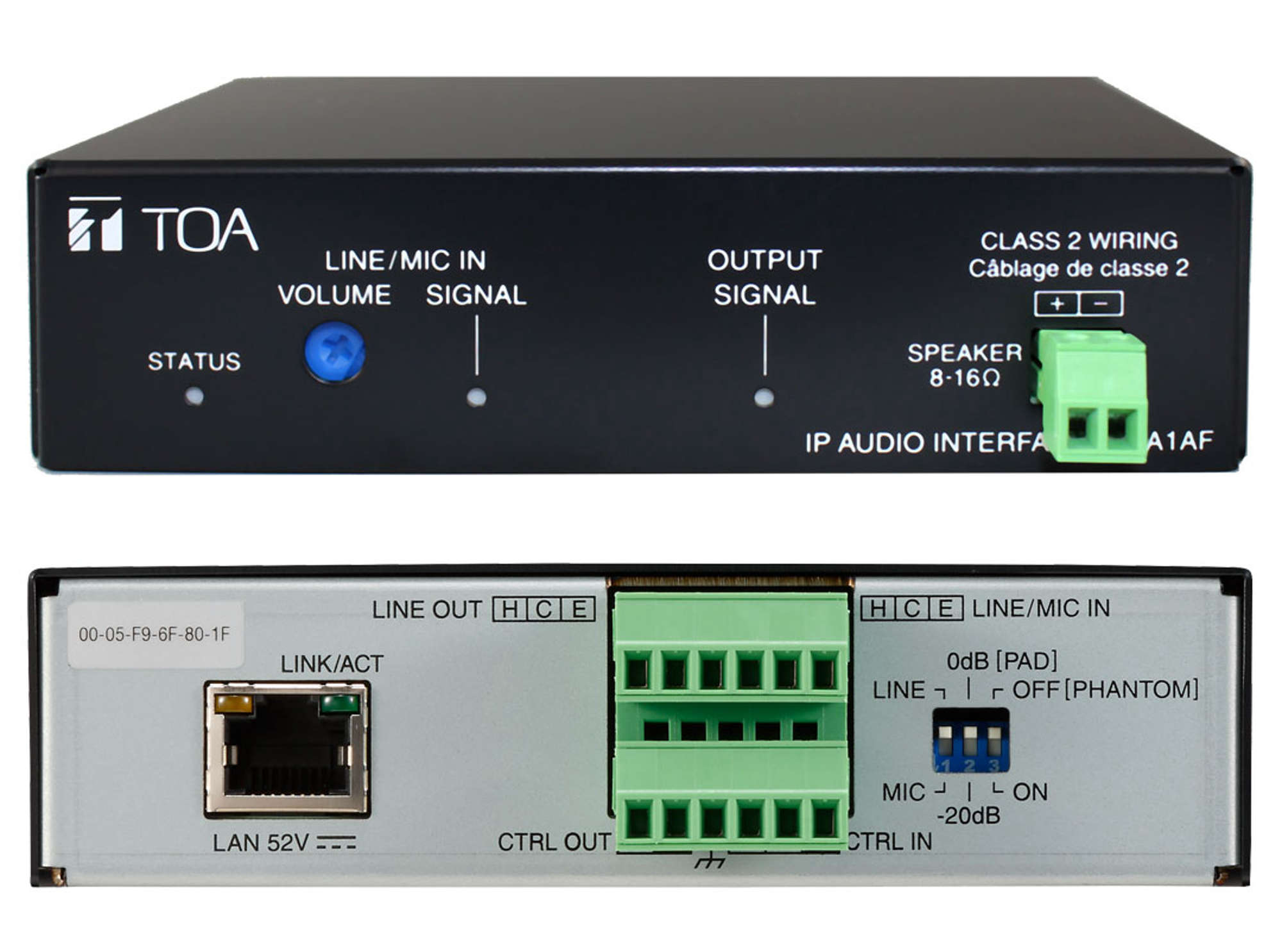

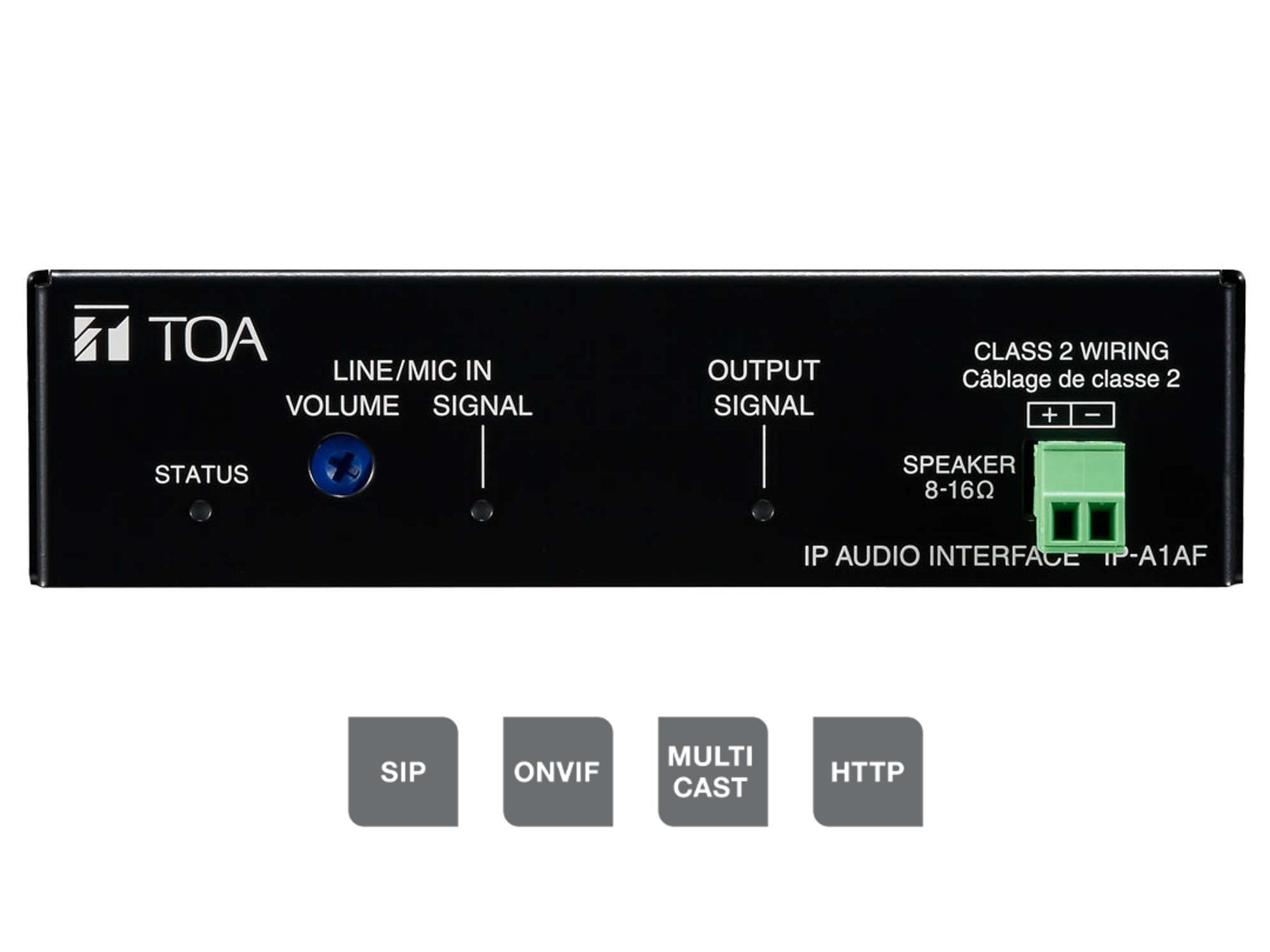

TOA IP-A1AF
The TOA IP-A1AF IP Audio Interface is based on open standards to connect straight into standard IP networks and can be easily integrated into your video management system (VMS) or SIP-based communication system. A single standard network cable provides both connectivity and power.
An upgrade to Audio over IP need not be expensive as existing speakers and other audio equipment can still be used. The IP-A1AF enables existing conventional high impedance loudspeakers or local PA systems to be integrated into your network.
Furthermore, PA or BGM systems without SIP or ONVIF* interface can now be integrated into your network solutions.
Flexible Group Paging: The IP Audio Interface can also be addressed via multicast, enabling audio paging into groups or larger zones of IP audio devices simultaneously.
Along with a line level audio output, the interface also has a small amplifier built in and low impedance speaker connections which can be used to connect a local monitor speaker.
Application Examples:
Event rooms with high power analogue PA systems can be integrated into VMS or SIP telephone systems. Retail chains with existing local PA/BGM systems can be integrated into IP solutions providing network control and centralized management opportunities.
- Receive SIP audio, ONVIF* audio and multicast audio (up to 20 addresses)
- Local broadcast using internal audio files or local audio source
- 1 audio input (LINE/MIC and phantom power selectable)
- 15 W (PoE+) / 8 W (PoE) built-in amplifier, 1 LINE audio output
- API (HTTP commands)
- Audio file storage (20 files, total 80 MB, WAV/ MP3)
- Different playback programs (repeat, duration, weekly timer)
- PoE+ / PoE-powered
- Warranty: 1 Year
 |
*ONVIF is a registered trademark of ONVIF Inc.
